Data-Tiling Walkthroughlink

Data-tiling is the modification of data layout of operands of certain operations, such as matrix multiplication, that prefer specific layouts. These layout preferences depend on the operations and the target hardware. For example, matrix multiplications may need to use hardware matrix multiplication instructions that perform optimally with a specific matrix data layout.

Layout changes may also be motivated by memory access performance, as data-tiling can result in improved locality of memory accesses, fewer cache lines being accessed, and generally simpler memory access patterns that are more likely to be handled performantly by the memory system.

These layout changes can be propagated as far as possible across the workload, so the entire workload can use the updated layouts, as opposed to having to perform layout transformations at runtime. This may involve fusions or constant-evaluation that can amortize or remove layout-transformation overheads.

The main conceptual difficulty in modeling this in tensor-level MLIR is that tensors don't have layouts: tensors are higher-level, abstract arrays. This is addressed by the concept of tensor encodings, which this document will explain.

Prior Readinglink

Introducing layout transformations is not hard in itself. What is hard is making that fit in the progressive-lowerings design of a retargetable compiler. The solution we have in IREE is using tensor encodings, which represents virtual layout. The below talk walks through how IREE uses the Encoding dialect in host/device programming model. [Link to the slides]

Recording: Data-Tiling in IREE: Achieving High Performance Through Compiler Design (AsiaLLVM)

Setuplink

Compilation command, that targets gfx942 AMDGPU:

iree-compile matmul.mlir -o /tmp/matmul.mlir \
  --iree-hal-target-device=hip \
  --iree-hip-target=gfx942 \
  --iree-opt-data-tiling=false \
  --iree-dispatch-creation-data-tiling \
  --iree-hip-encoding-layout-resolver=data-tiling \
  --iree-llvmgpu-test-combine-layout-transformation=true

Test source program, matmul.mlir:

func.func @matmul_f32f32f32(%arg0: tensor<?x?xf32>, %arg1: tensor<?x?xf32>) -> tensor<?x?xf32> {
  %c0 = arith.constant 0 : index
  %c1 = arith.constant 1 : index
  %dim = tensor.dim %arg0, %c0 : tensor<?x?xf32>
  %dim_0 = tensor.dim %arg1, %c1 : tensor<?x?xf32>
  %cst = arith.constant 0.000000e+00 : f32
  %0 = tensor.empty(%dim, %dim_0) : tensor<?x?xf32>
  %1 = linalg.fill ins(%cst : f32) outs(%0 : tensor<?x?xf32>) -> tensor<?x?xf32>
  %2 = linalg.matmul
    ins(%arg0, %arg1 : tensor<?x?xf32>, tensor<?x?xf32>)
    outs(%1 : tensor<?x?xf32>) -> tensor<?x?xf32>
  return %2 : tensor<?x?xf32>
}
Compilation command that targets host CPU Below is the compilation command that targets your host CPU. The IR dumps are different from what the post shows, but they follow the same mechanism.
iree-compile matmul.mlir -o /tmp/matmul.mlir \
  --iree-hal-target-device=local \
  --iree-hal-local-target-device-backends=llvm-cpu \
  --iree-llvmcpu-target-cpu-features=host \
  --iree-opt-data-tiling=false \
  --iree-dispatch-creation-data-tiling

Target-Independent Optimizationslink

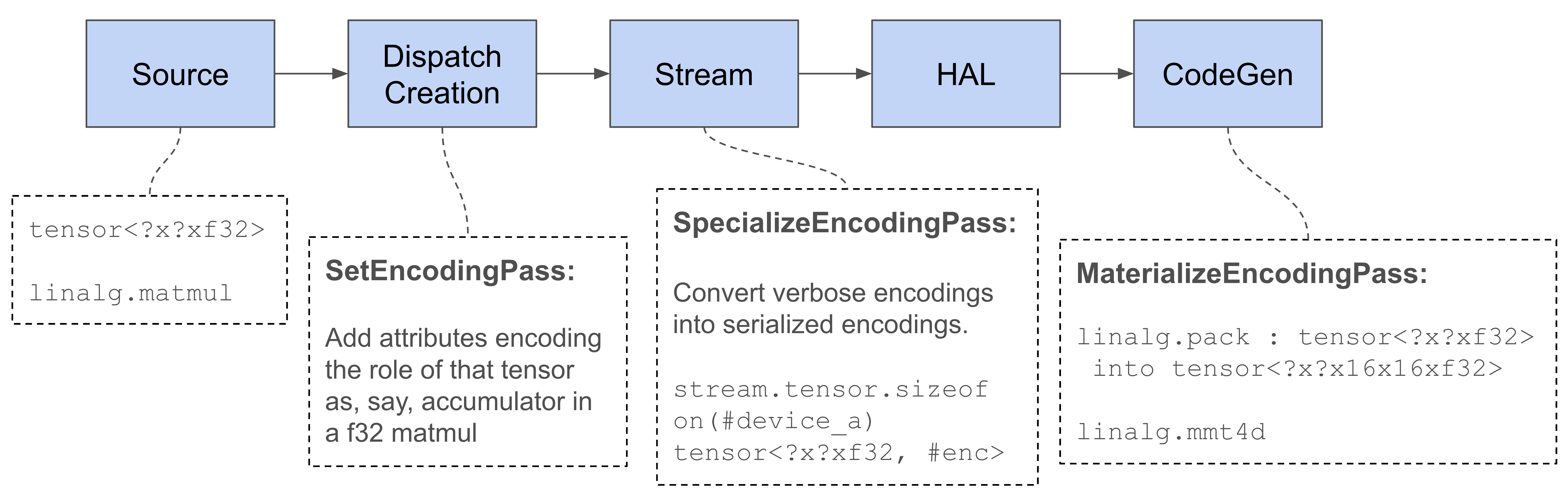

Data-tiling can start from either GlobalOptimization phase or DispatchCreation phase. The former one is the current default, and the latter one is mainly designed for data-tiling fusion. In this post, we focus on the data-tiling fusion path, thus it happens in DispatchCreation phase.

overview

Introduction of Encoding Dialectlink

The encoding dialect defines IREE tensor encoding attributes and related ops. These encoding hints enable optimization of compute-heavy operations like matmul. E.g., IREE implements data-tiling using the encoding dialect, by introducing encodings on matmul ops and fuse encoding ops with producers.

There are two core operations in this dialect, and they are very simple:

  • SetEncodingOp: Adds an encoding attribute to a tensor value.
  • UnsetEncodingOp: Removes the encoding attribute from a tensor value.

Encoding attributes fall into two categories:

  • Encoding type attribute: An encoding type attribute is expected to be attached on tensor types.
  • Encoding resolver: An attribute that transforms encoding type attribute between the states.

An encoding type attribute typically goes through three states in the lowering.

+------------------+    +---------------------+    +--------------------+
| Verbose Encoding | -> | Serialized Encoding | -> | Physical Ops/Types |
+------------------+    +---------------------+    +--------------------+

Encoding resolvers are responsible for transforming the encodings between states. Each backend can define its own resolver to interpret encodings based on target-specific details.

To support encoding transformations better, IREE defines three encoding interfaces:

  • LayoutResolverAttr: Converts verbose encodings into serialized ones, based on target-specific information.
  • SerializableAttr: Represents serialized encoding formats with enough detail for host-side compilation.
  • LayoutMaterializerAttr: Lowers encodings into physical operations and types.

An encoding resolver must implement LayoutResolverAttr, as it needs to convert verbose encodings into serialized encodings with target specifics.

Sometimes, an encoding resolver also implements SerializableAttr because the layout can be customized format, e.g., packing, etc. Only the resolver itself knows how to interpret the layout.

An encoding resolver must implement LayoutMaterializerAttr, because only the resolver itself knows what the final operations and types are.

AnnotateDataTilingHintsPass (DispatchCreation)link

Data-tiling is an optional technique. It is hard to enable data-tiling for all the matmuls unconditionally, especially if an user wants to apply different strategies on specific matmuls.

A design idea of the pass is providing a mechanism to users that can selectively enable data-tiling for matmuls. There are two modes:

  • Attach the data-tiling hint attribute to all the matmuls, if the hint does not exist in any operation.
  • Skip the pass, if any operation already has the data-tiling hint attribute.

It allows users to set the attribute in preprocessing phase or the model.

IR dump before the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
  %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
  %2 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<?x?xf32>{%0, %1}
  %3 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
  %4 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
  %5 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<?x?xf32>{%3, %4}
  %6 = flow.dispatch.region -> (tensor<?x?xf32>{%0, %4}) {
    %8 = tensor.empty(%0, %4) : tensor<?x?xf32>
    %cst = arith.constant 0.000000e+00 : f32
    %9 = linalg.fill ins(%cst : f32) outs(%8 : tensor<?x?xf32>) -> tensor<?x?xf32>
    %10 = linalg.matmul
      ins(%2, %5 : tensor<?x?xf32>, tensor<?x?xf32>)
      outs(%9 : tensor<?x?xf32>) -> tensor<?x?xf32>
    flow.return %10 : tensor<?x?xf32>
  }
  %7 = hal.tensor.export %6 "output0" : tensor<?x?xf32>{%0, %4} -> !hal.buffer_view
  util.return %7 : !hal.buffer_view
}
IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
  %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
  %2 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<?x?xf32>{%0, %1}
  %3 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
  %4 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
  %5 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<?x?xf32>{%3, %4}
  %6 = flow.dispatch.region -> (tensor<?x?xf32>{%0, %4}) {
    %8 = tensor.empty(%0, %4) : tensor<?x?xf32>
    %cst = arith.constant 0.000000e+00 : f32
    %9 = linalg.fill ins(%cst : f32) outs(%8 : tensor<?x?xf32>) -> tensor<?x?xf32>
    %10 = linalg.matmul {iree.opt.data_tiling}
      ins(%2, %5 : tensor<?x?xf32>, tensor<?x?xf32>)
      outs(%9 : tensor<?x?xf32>) -> tensor<?x?xf32>
    flow.return %10 : tensor<?x?xf32>
  }
  %7 = hal.tensor.export %6 "output0" : tensor<?x?xf32>{%0, %4} -> !hal.buffer_view
  util.return %7 : !hal.buffer_view
}

SetEncodingPass (DispatchCreation)link

The pass sets the encodings on matmul operands, and it propagates the encodings through the linalg.fill op. You can encode whatever static information in the encodings, as long as they provide values to backend that helps code-generation decision.

The trade-off is that verbose encodings are harder to lower, especially for host compilation. E.g., the compiler is not able to CSE the return values from a dispatch region, if they have different encodings but result in identical results in the later lowering. I.e., it can result in additional memory footprint, that IREE definitely wants to avoid as many as possible. It also makes encoding propagation harder, as the compiler needs to track all the information in relevant fields.

What is encoded in IREE are:

  • Operation type. E.g., matmul.
  • Operand index. E.g., lhs, rhs, etc.
  • Element type of each operand. E.g., [f32, f32, f32].
  • Indexing map of each operand.
  • Iteration sizes.

The iteration_sizes field can be optional in terms of functionality. They are useful for skinny matmul like matvec, vecmat, etc.

Note: it looks dumb in the IR dump, because it does not provide any information to the local dispatch. However, it is very useful in the later lowering because IREE can fuse iree_encoding.set_encoding ops with producers that provide the information across dispatches.

IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [?, ?, ?]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
  %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
  %2 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<?x?xf32>{%0, %1}
  %3 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
  %4 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
  %5 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<?x?xf32>{%3, %4}
  %6 = flow.dispatch.region -> (tensor<?x?xf32>{%0, %4}) {
    %cst = arith.constant 0.000000e+00 : f32
    %8 = iree_encoding.set_encoding %2 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding>
    %9 = iree_encoding.set_encoding %5 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding1>
    %10 = tensor.empty(%0, %4) : tensor<?x?xf32, #encoding2>
    %11 = linalg.fill ins(%cst : f32) outs(%10 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
    %12 = linalg.matmul
      ins(%8, %9 : tensor<?x?xf32, #encoding>, tensor<?x?xf32, #encoding1>)
      outs(%11 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
    %13 = iree_encoding.unset_encoding %12 : tensor<?x?xf32, #encoding2> -> tensor<?x?xf32>{%0, %4}
    flow.return %13 : tensor<?x?xf32>
  }
  %7 = hal.tensor.export %6 "output0" : tensor<?x?xf32>{%0, %4} -> !hal.buffer_view
  util.return %7 : !hal.buffer_view
}

HoistEncodingOpsPass (DispatchCreation)link

The pass runs local propagation locally and hoists tensor encoding ops outside Flow dispatch regions, so the iree_encoding.set_encoding ops can be fused within producers later on.

IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [?, ?, ?]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
  %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
  %2 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<?x?xf32>{%0, %1}
  %3 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
  %4 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
  %5 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<?x?xf32>{%3, %4}
  %6 = iree_encoding.set_encoding %2 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding>
  %7 = iree_encoding.set_encoding %5 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding1>
  %8 = flow.dispatch.region -> (tensor<?x?xf32>{%0, %4}) {
    %cst = arith.constant 0.000000e+00 : f32
    %10 = tensor.empty(%0, %4) : tensor<?x?xf32, #encoding2>
    %11 = linalg.fill ins(%cst : f32) outs(%10 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
    %12 = linalg.matmul
      ins(%6, %7 : tensor<?x?xf32, #encoding>, tensor<?x?xf32, #encoding1>)
      outs(%11 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
    %13 = iree_encoding.unset_encoding %12 : tensor<?x?xf32, #encoding2> -> tensor<?x?xf32>{%0, %4}
    flow.return %13 : tensor<?x?xf32>
  }
  %9 = hal.tensor.export %8 "output0" : tensor<?x?xf32>{%0, %4} -> !hal.buffer_view
  util.return %9 : !hal.buffer_view
}
Example with local propagation There is an elementwise operation followed by the `linalg.matmul` op, and the second input operand has an encoding after propagation. Thus, there are three `iree_encoding.set_encoding` ops in total outside dispatch regions. A new `#encoding3` is generated because of the broadcasting map.
IR dump before the pass:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#map3 = affine_map<(d0, d1) -> (d0, d1)>
#map4 = affine_map<(d0, d1) -> (d1)>
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [255, 1023, 513]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
util.func public @foo(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<255x513xf32>
  %1 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<1023xf32>
  %2 = flow.dispatch.region -> (tensor<255x1023xf32>) {
    %4 = tensor.empty() : tensor<255x1023xf32>
    %cst = arith.constant 0.000000e+00 : f32
    %cst_0 = arith.constant dense<1.000000e+00> : tensor<513x1023xf32>
    %5 = iree_encoding.set_encoding %0 : tensor<255x513xf32> -> tensor<255x513xf32, #encoding>
    %6 = iree_encoding.set_encoding %cst_0 : tensor<513x1023xf32> -> tensor<513x1023xf32, #encoding1>
    %7 = tensor.empty() : tensor<255x1023xf32, #encoding2>
    %8 = linalg.fill ins(%cst : f32) outs(%7 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
    %9 = linalg.matmul
      ins(%5, %6 : tensor<255x513xf32, #encoding>, tensor<513x1023xf32, #encoding1>)
      outs(%8 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
    %10 = iree_encoding.unset_encoding %9 : tensor<255x1023xf32, #encoding2> -> tensor<255x1023xf32>
    %11 = linalg.generic {indexing_maps = [#map3, #map4, #map3], iterator_types = ["parallel", "parallel"]}
      ins(%10, %1 : tensor<255x1023xf32>, tensor<1023xf32>)
      outs(%4 : tensor<255x1023xf32>) {
    ^bb0(%in: f32, %in_1: f32, %out: f32):
      %12 = arith.mulf %in, %in_1 : f32
      linalg.yield %12 : f32
    } -> tensor<255x1023xf32>
    flow.return %11 : tensor<255x1023xf32>
  }
  %3 = hal.tensor.export %2 "output0" : tensor<255x1023xf32> -> !hal.buffer_view
  util.return %3 : !hal.buffer_view
}
IR dump after the pass:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#map3 = affine_map<(d0, d1) -> (d1)>
#map4 = affine_map<(d0, d1) -> (d0, d1)>
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [255, 1023, 513]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding3 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, [#map2, #map3]],
                                     iteration_sizes = [255, 1023, 513]>
util.func public @foo(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<255x513xf32>
  %1 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<1023xf32>
  %2 = iree_encoding.set_encoding %0 : tensor<255x513xf32> -> tensor<255x513xf32, #encoding>
  %cst = arith.constant dense<1.000000e+00> : tensor<513x1023xf32>
  %3 = iree_encoding.set_encoding %cst : tensor<513x1023xf32> -> tensor<513x1023xf32, #encoding1>
  %4 = iree_encoding.set_encoding %1 : tensor<1023xf32> -> tensor<1023xf32, #encoding3>
  %5 = flow.dispatch.region -> (tensor<255x1023xf32>) {
    %7 = tensor.empty() : tensor<255x1023xf32, #encoding2>
    %cst_0 = arith.constant 0.000000e+00 : f32
    %8 = tensor.empty() : tensor<255x1023xf32, #encoding2>
    %9 = linalg.fill ins(%cst_0 : f32) outs(%8 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
    %10 = linalg.matmul
      ins(%2, %3 : tensor<255x513xf32, #encoding>, tensor<513x1023xf32, #encoding1>)
      outs(%9 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
    %11 = linalg.generic {indexing_maps = [#map4, #map3, #map4], iterator_types = ["parallel", "parallel"]}
      ins(%10, %4 : tensor<255x1023xf32, #encoding2>, tensor<1023xf32, #encoding3>)
      outs(%7 : tensor<255x1023xf32, #encoding2>) {
    ^bb0(%in: f32, %in_1: f32, %out: f32):
      %13 = arith.mulf %in, %in_1 : f32
      linalg.yield %13 : f32
    } -> tensor<255x1023xf32, #encoding2>
    %12 = iree_encoding.unset_encoding %11 : tensor<255x1023xf32, #encoding2> -> tensor<255x1023xf32>
    flow.return %12 : tensor<255x1023xf32>
  }
  %6 = hal.tensor.export %5 "output0" : tensor<255x1023xf32> -> !hal.buffer_view
  util.return %6 : !hal.buffer_view
}

PropagateEncodingsPass (DispatchCreation)link

This is a placeholder for propagating encodings globally, i.e., outside flow.dispatch.region ops. However, the pass does not perform anything because the design and the implementation are not done yet.

FuseEncodingOpsIntoDispatchRegionsPass (DispatchCreation)link

The pass fuses iree_encoding.set_encoding ops, that are outside dispatch regions, into producer, if the source is a flow.dispatch.region op.

The result IR is the same in the example. You can go to the lit tests for examples.

ConvertEncodingToFlowPass (DispatchCreation)link

The pass replaces iree_encoding.set_encoding ops with flow.tensor.encode ops, if they are outside dispatch regions. The design idea is mainly for folding. Otherwise, it results in an executable that performs copy if the relayout is not needed.

IREE specializes the encodings in a later pass (i.e., SpecializeEncodingsPass) that converts verbose encodings to serialized encodings. The [flow|stream].tensor.encode ops can be folded away, if the source tensor type is identical to the result tensor type.

IR dump after the pass Note: the `canonicalize` is run after the pass in this example, because it makes IR clear. Otherwise, there are `arith.constant` ops and `tensor.dim` ops around `flow.tensor.encode` ops.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [?, ?, ?]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
module {
  util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
    %cst = arith.constant 0.000000e+00 : f32
    %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
    %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
    %2 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<?x?xf32>{%0, %1}
    %3 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
    %4 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
    %5 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<?x?xf32>{%3, %4}
    %6 = flow.tensor.encode %2 : tensor<?x?xf32>{%0, %1} -> tensor<?x?xf32, #encoding>{%0, %1}
    %7 = flow.tensor.encode %5 : tensor<?x?xf32>{%3, %4} -> tensor<?x?xf32, #encoding1>{%3, %4}
    %8 = flow.dispatch.region -> (tensor<?x?xf32>{%0, %4}) {
      %10 = tensor.empty(%0, %4) : tensor<?x?xf32, #encoding2>
      %11 = linalg.fill ins(%cst : f32) outs(%10 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
      %12 = linalg.matmul
        ins(%6, %7 : tensor<?x?xf32, #encoding>, tensor<?x?xf32, #encoding1>)
        outs(%11 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
      %13 = iree_encoding.unset_encoding %12 : tensor<?x?xf32, #encoding2> -> tensor<?x?xf32>{%0, %4}
      flow.return %13 : tensor<?x?xf32>
    }
    %9 = hal.tensor.export %8 "output0" : tensor<?x?xf32>{%0, %4} -> !hal.buffer_view
    util.return %9 : !hal.buffer_view
  }
}

HoistIntoGlobalsPass (DispatchCreation)link

This is where IREE hoists relayout ops that perform on weights and constants to initializers. IREE performs ConstExprAnalysis and hoists the constant expressions to util.initializer modules. They will be executed either during compile-time or initialization phase. I.e., it is not part of the actual execution.

It creates a global variable for each expression and stores the result to new variables. On the program side, all the hoisted computation is replaced with util.global.load ops.

The result IR is the same in the example. The below example demonstrates the hoisting result if the source is weight.

Note: const-evaluation is not yet supported after global optimization phase, so they can only be executed in initialization phase today.

Example with hoisting to initializers IR dump before the pass:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#map3 = affine_map<(d0, d1) -> (d1)>
#map4 = affine_map<(d0, d1) -> (d0, d1)>
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [255, 1023, 513]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding3 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, [#map2, #map3]],
                                     iteration_sizes = [255, 1023, 513]>
util.func public @foo(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %0 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<255x513xf32>
  %1 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<1023xf32>
  %2 = flow.tensor.encode %0 : tensor<255x513xf32> -> tensor<255x513xf32, #encoding>
  %cst = arith.constant dense<1.000000e+00> : tensor<513x1023xf32>
  %3 = flow.tensor.encode %cst : tensor<513x1023xf32> -> tensor<513x1023xf32, #encoding1>
  %4 = flow.tensor.encode %1 : tensor<1023xf32> -> tensor<1023xf32, #encoding3>
  %5 = flow.dispatch.region -> (tensor<255x1023xf32>) {
    %7 = tensor.empty() : tensor<255x1023xf32, #encoding2>
    %cst_0 = arith.constant 0.000000e+00 : f32
    %8 = linalg.fill ins(%cst_0 : f32) outs(%7 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
    %9 = linalg.matmul
      ins(%2, %3 : tensor<255x513xf32, #encoding>, tensor<513x1023xf32, #encoding1>)
      outs(%8 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
    %10 = linalg.generic {indexing_maps = [#map4, #map3, #map4], iterator_types = ["parallel", "parallel"]}
      ins(%9, %4 : tensor<255x1023xf32, #encoding2>, tensor<1023xf32, #encoding3>)
      outs(%7 : tensor<255x1023xf32, #encoding2>) {
    ^bb0(%in: f32, %in_1: f32, %out: f32):
      %12 = arith.mulf %in, %in_1 : f32
      linalg.yield %12 : f32
    } -> tensor<255x1023xf32, #encoding2>
    %11 = iree_encoding.unset_encoding %10 : tensor<255x1023xf32, #encoding2> -> tensor<255x1023xf32>
    flow.return %11 : tensor<255x1023xf32>
  }
  %6 = hal.tensor.export %5 "output0" : tensor<255x1023xf32> -> !hal.buffer_view
  util.return %6 : !hal.buffer_view
}
IR dump after the pass:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#executable_target_rocm_hsaco_fb = #hal.executable.target<"rocm", "rocm-hsaco-fb", {abi = "hip", iree.encoding.resolver = #iree_gpu.gpu_encoding_resolver<>, iree_codegen.target_info = #iree_gpu.target<arch = "gfx942", features = "", wgp = <compute =  fp64|fp32|fp16|int64|int32|int16|int8, storage =  b64|b32|b16|b8, subgroup =  shuffle|arithmetic, dot =  dp4xi8toi32, mma = [<MFMA_F32_16x16x16_BF16>, <MFMA_F32_32x32x8_BF16>, <MFMA_F32_16x16x32_F8E5M2FNUZ>, <MFMA_F32_16x16x32_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_I32_16x16x32_I8>, <MFMA_I32_32x32x16_I8>, <MFMA_F64_16x16x4_F64>, <MFMA_F32_16x16x4_F32>, <MFMA_F32_16x16x16_F16>, <MFMA_F32_32x32x8_F16>], subgroup_size_choices = [64], max_workgroup_sizes = [1024, 1024, 1024], max_thread_count_per_workgroup = 1024, max_workgroup_memory_bytes = 65536, max_workgroup_counts = [2147483647, 2147483647, 2147483647], max_load_instruction_bits = 128, simds_per_wgp = 4, vgpr_space_bits = 16384>>, ukernels = "none"}>
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#map3 = affine_map<(d0, d1) -> (d1)>
#map4 = affine_map<(d0, d1) -> (d0, d1)>
#device_target_hip = #hal.device.target<"hip", [#executable_target_rocm_hsaco_fb]> : !hal.device
#encoding = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                    element_types = [f32, f32, f32],
                                    user_indexing_maps = [#map, #map1, #map2],
                                    iteration_sizes = [255, 1023, 513]>
#encoding1 = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [255, 1023, 513]>
#encoding3 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, [#map2, #map3]],
                                     iteration_sizes = [255, 1023, 513]>
module attributes {stream.affinity.default = #hal.device.affinity<@__device_0>} {
  util.global private @__device_0 = #device_target_hip
  util.global private @__hoisted_tensor_513x1023xf32__encoded {stream.affinity.default = #hal.device.affinity<@__device_0>} : tensor<513x1023xf32, #encoding>
  util.initializer attributes {stream.affinity.default = #hal.device.affinity<@__device_0>} {
    %cst = arith.constant dense<1.000000e+00> : tensor<513x1023xf32>
    %0 = flow.tensor.encode %cst : tensor<513x1023xf32> -> tensor<513x1023xf32, #encoding>
    util.global.store %0, @__hoisted_tensor_513x1023xf32__encoded : tensor<513x1023xf32, #encoding>
    util.return
  }
  util.func public @foo(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
    %0 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<255x513xf32>
    %1 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<1023xf32>
    %2 = flow.tensor.encode %0 : tensor<255x513xf32> -> tensor<255x513xf32, #encoding1>
    %__hoisted_tensor_513x1023xf32__encoded = util.global.load immutable @__hoisted_tensor_513x1023xf32__encoded : tensor<513x1023xf32, #encoding>
    %3 = flow.tensor.encode %1 : tensor<1023xf32> -> tensor<1023xf32, #encoding3>
    %4 = flow.dispatch.region -> (tensor<255x1023xf32>) {
      %6 = tensor.empty() : tensor<255x1023xf32, #encoding2>
      %cst = arith.constant 0.000000e+00 : f32
      %7 = linalg.fill ins(%cst : f32) outs(%6 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
      %8 = linalg.matmul
        ins(%2, %__hoisted_tensor_513x1023xf32__encoded : tensor<255x513xf32, #encoding1>, tensor<513x1023xf32, #encoding>)
        outs(%7 : tensor<255x1023xf32, #encoding2>) -> tensor<255x1023xf32, #encoding2>
      %9 = linalg.generic {indexing_maps = [#map4, #map3, #map4], iterator_types = ["parallel", "parallel"]}
        ins(%8, %3 : tensor<255x1023xf32, #encoding2>, tensor<1023xf32, #encoding3>)
        outs(%6 : tensor<255x1023xf32, #encoding2>) {
      ^bb0(%in: f32, %in_0: f32, %out: f32):
        %11 = arith.mulf %in, %in_0 : f32
        linalg.yield %11 : f32
      } -> tensor<255x1023xf32, #encoding2>
      %10 = iree_encoding.unset_encoding %9 : tensor<255x1023xf32, #encoding2> -> tensor<255x1023xf32>
      flow.return %10 : tensor<255x1023xf32>
    }
    %5 = hal.tensor.export %4 "output0" : tensor<255x1023xf32> -> !hal.buffer_view
    util.return %5 : !hal.buffer_view
  }
}

ConvertToStreamPasslink

IREE then converts dispatch regions to workgroup ops, outlines them to executables, and convert flow ops to stream ops. It is not data-tiling specifics, but the IR dump before and after the pass is showed for better picture.

After the conversion, the flow executables all become stream executables, and the function arguments become opaque types (i.e., stream.binding types).

The host code is mostly composed of stream.tensor.sizeof and stream.tensor.dispatch ops.

  • The sizeof op takes a tensor type with an optional encoding and indicates the storage buffer size that will be used to issue the allocation later on.
  • The dispatch op describes how we call the functions in the program.
IR dump before the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#executable_target_rocm_hsaco_fb = #hal.executable.target<"rocm", "rocm-hsaco-fb", {abi = "hip", iree.encoding.resolver = #iree_gpu.gpu_encoding_resolver<>, iree_codegen.default_tuning_spec = #rocm.builtin.tuning_module<"iree_default_tuning_spec_gfx942.mlir">, iree_codegen.target_info = #iree_gpu.target<arch = "gfx942", features = "", wgp = <compute =  fp64|fp32|fp16|int64|int32|int16|int8, storage =  b64|b32|b16|b8, subgroup =  shuffle|arithmetic, dot =  dp4xi8toi32, mma = [<MFMA_F32_16x16x16_BF16>, <MFMA_F32_32x32x8_BF16>, <MFMA_F32_16x16x32_F8E5M2FNUZ>, <MFMA_F32_16x16x32_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_I32_16x16x32_I8>, <MFMA_I32_32x32x16_I8>, <MFMA_F64_16x16x4_F64>, <MFMA_F32_16x16x4_F32>, <MFMA_F32_16x16x16_F16>, <MFMA_F32_32x32x8_F16>], subgroup_size_choices = [64], max_workgroup_sizes = [1024, 1024, 1024], max_thread_count_per_workgroup = 1024, max_workgroup_memory_bytes = 65536, max_workgroup_counts = [2147483647, 2147483647, 2147483647], max_load_instruction_bits = 128, simds_per_wgp = 4, vgpr_space_bits = 16384>>, ukernels = "none"}>
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#device_target_hip = #hal.device.target<"hip", [#executable_target_rocm_hsaco_fb]> : !hal.device
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
module attributes {stream.affinity.default = #hal.device.affinity<@__device_0>} {
  util.global private @__device_0 = #device_target_hip
  flow.executable private @matmul_f32f32f32_dispatch_0 {
    flow.executable.export public @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32 workgroups(%arg0: index, %arg1: index, %arg2: index, %arg3: index) -> (index, index, index) {
      %x, %y, %z = iree_tensor_ext.dispatch.workgroup_count_from_slice(%arg0, %arg1, %arg2, %arg3)
      flow.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32(%arg0: !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>, %arg1: !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>, %arg2: index, %arg3: index, %arg4: index, %arg5: index, %arg6: !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>) {
        %cst = arith.constant 0.000000e+00 : f32
        %0 = iree_tensor_ext.dispatch.workload.ordinal %arg2, 0 : index
        %1 = iree_tensor_ext.dispatch.workload.ordinal %arg3, 1 : index
        %2 = iree_tensor_ext.dispatch.workload.ordinal %arg4, 2 : index
        %3 = iree_tensor_ext.dispatch.workload.ordinal %arg5, 3 : index
        %4 = flow.dispatch.tie_shape %arg0 : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1}
        %5 = flow.dispatch.tie_shape %arg1 : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3}
        %6 = flow.dispatch.tie_shape %arg6 : !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        %7 = iree_tensor_ext.dispatch.tensor.load %4, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1} -> tensor<?x?xf32, #encoding>
        %8 = iree_tensor_ext.dispatch.tensor.load %5, offsets = [0, 0], sizes = [%2, %3], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3} -> tensor<?x?xf32, #encoding1>
        %9 = tensor.empty(%0, %3) : tensor<?x?xf32, #encoding2>
        %10 = linalg.fill ins(%cst : f32) outs(%9 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
        %11 = linalg.matmul ins(%7, %8 : tensor<?x?xf32, #encoding>, tensor<?x?xf32, #encoding1>) outs(%10 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
        %12 = iree_encoding.unset_encoding %11 : tensor<?x?xf32, #encoding2> -> tensor<?x?xf32>{%0, %3}
        iree_tensor_ext.dispatch.tensor.store %12, %6, offsets = [0, 0], sizes = [%0, %3], strides = [1, 1] : tensor<?x?xf32> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        return
      }
    }
  }
  util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub, iree.reflection = {iree.abi.declaration = "sync func @matmul_f32f32f32(%input0: tensor<?x?xf32>, %input1: tensor<?x?xf32>) -> (%output0: tensor<?x?xf32>)"}} {
    %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
    %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
    %2 = hal.tensor.import %arg0 "input0" : !hal.buffer_view -> tensor<?x?xf32>{%0, %1}
    %3 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
    %4 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
    %5 = hal.tensor.import %arg1 "input1" : !hal.buffer_view -> tensor<?x?xf32>{%3, %4}
    %6 = flow.tensor.encode %2 : tensor<?x?xf32>{%0, %1} -> tensor<?x?xf32, #encoding>{%0, %1}
    %7 = flow.tensor.encode %5 : tensor<?x?xf32>{%3, %4} -> tensor<?x?xf32, #encoding1>{%3, %4}
    %8 = flow.dispatch @matmul_f32f32f32_dispatch_0::@matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32[%0, %1, %3, %4](%6, %7, %0, %1, %3, %4) : (tensor<?x?xf32, #encoding>{%0, %1}, tensor<?x?xf32, #encoding1>{%3, %4}, index, index, index, index) -> tensor<?x?xf32>{%0, %4}
    %9 = hal.tensor.export %8 "output0" : tensor<?x?xf32>{%0, %4} -> !hal.buffer_view
    util.return %9 : !hal.buffer_view
  }
}
IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
#executable_target_rocm_hsaco_fb = #hal.executable.target<"rocm", "rocm-hsaco-fb", {abi = "hip", iree.encoding.resolver = #iree_gpu.gpu_encoding_resolver<>, iree_codegen.default_tuning_spec = #rocm.builtin.tuning_module<"iree_default_tuning_spec_gfx942.mlir">, iree_codegen.target_info = #iree_gpu.target<arch = "gfx942", features = "", wgp = <compute =  fp64|fp32|fp16|int64|int32|int16|int8, storage =  b64|b32|b16|b8, subgroup =  shuffle|arithmetic, dot =  dp4xi8toi32, mma = [<MFMA_F32_16x16x16_BF16>, <MFMA_F32_32x32x8_BF16>, <MFMA_F32_16x16x32_F8E5M2FNUZ>, <MFMA_F32_16x16x32_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_I32_16x16x32_I8>, <MFMA_I32_32x32x16_I8>, <MFMA_F64_16x16x4_F64>, <MFMA_F32_16x16x4_F32>, <MFMA_F32_16x16x16_F16>, <MFMA_F32_32x32x8_F16>], subgroup_size_choices = [64], max_workgroup_sizes = [1024, 1024, 1024], max_thread_count_per_workgroup = 1024, max_workgroup_memory_bytes = 65536, max_workgroup_counts = [2147483647, 2147483647, 2147483647], max_load_instruction_bits = 128, simds_per_wgp = 4, vgpr_space_bits = 16384>>, ukernels = "none"}>
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#device_target_hip = #hal.device.target<"hip", [#executable_target_rocm_hsaco_fb]> : !hal.device
#encoding = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
#encoding1 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
#encoding2 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
module attributes {stream.affinity.default = #hal.device.affinity<@__device_0>} {
  util.global private @__device_0 = #device_target_hip
  stream.executable private @matmul_f32f32f32_dispatch_0 {
    stream.executable.export public @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32 workgroups(%arg0: index, %arg1: index, %arg2: index, %arg3: index) -> (index, index, index) {
      %x, %y, %z = iree_tensor_ext.dispatch.workgroup_count_from_slice(%arg0, %arg1, %arg2, %arg3)
      stream.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: index, %arg3: index, %arg4: index, %arg5: index, %arg6: !stream.binding) {
        %c0 = arith.constant 0 : index
        %cst = arith.constant 0.000000e+00 : f32
        %0 = iree_tensor_ext.dispatch.workload.ordinal %arg2, 0 : index
        %1 = iree_tensor_ext.dispatch.workload.ordinal %arg3, 1 : index
        %2 = iree_tensor_ext.dispatch.workload.ordinal %arg4, 2 : index
        %3 = iree_tensor_ext.dispatch.workload.ordinal %arg5, 3 : index
        %4 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1}
        %5 = stream.binding.subspan %arg1[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3}
        %6 = stream.binding.subspan %arg6[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        %7 = iree_tensor_ext.dispatch.tensor.load %4, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1} -> tensor<?x?xf32, #encoding>
        %8 = iree_tensor_ext.dispatch.tensor.load %5, offsets = [0, 0], sizes = [%2, %3], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3} -> tensor<?x?xf32, #encoding1>
        %9 = tensor.empty(%0, %3) : tensor<?x?xf32, #encoding2>
        %10 = linalg.fill ins(%cst : f32) outs(%9 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
        %11 = linalg.matmul ins(%7, %8 : tensor<?x?xf32, #encoding>, tensor<?x?xf32, #encoding1>) outs(%10 : tensor<?x?xf32, #encoding2>) -> tensor<?x?xf32, #encoding2>
        %12 = iree_encoding.unset_encoding %11 : tensor<?x?xf32, #encoding2> -> tensor<?x?xf32>{%0, %3}
        iree_tensor_ext.dispatch.tensor.store %12, %6, offsets = [0, 0], sizes = [%0, %3], strides = [1, 1] : tensor<?x?xf32> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        return
      }
    }
  }
  util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub, iree.reflection = {iree.abi.declaration = "sync func @matmul_f32f32f32(%input0: tensor<?x?xf32>, %input1: tensor<?x?xf32>) -> (%output0: tensor<?x?xf32>)"}} {
    %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
    %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
    %element_type_f32 = hal.element_type<f32> : i32
    %dense_row_major = hal.encoding_type<dense_row_major> : i32
    hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("input0") shape([%0, %1]) type(%element_type_f32) encoding(%dense_row_major)
    %2 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32>{%0, %1} : index
    %3 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg0 : !hal.buffer_view -> tensor<?x?xf32>{%0, %1} in !stream.resource<external>{%2}
    %4 = stream.async.transfer %3 : !stream.resource<external>{%2} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%2}
    %5 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
    %6 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
    %element_type_f32_0 = hal.element_type<f32> : i32
    %dense_row_major_1 = hal.encoding_type<dense_row_major> : i32
    hal.buffer_view.assert<%arg1 : !hal.buffer_view> message("input1") shape([%5, %6]) type(%element_type_f32_0) encoding(%dense_row_major_1)
    %7 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32>{%5, %6} : index
    %8 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg1 : !hal.buffer_view -> tensor<?x?xf32>{%5, %6} in !stream.resource<external>{%7}
    %9 = stream.async.transfer %8 : !stream.resource<external>{%7} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%7}
    %10 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32, #encoding>{%0, %1} : index
    %11 = stream.tensor.encode on(#hal.device.affinity<@__device_0>) %4 : tensor<?x?xf32>{%0, %1} in !stream.resource<*>{%2} -> tensor<?x?xf32, #encoding>{%0, %1} in !stream.resource<*>{%10}
    %12 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32, #encoding1>{%5, %6} : index
    %13 = stream.tensor.encode on(#hal.device.affinity<@__device_0>) %9 : tensor<?x?xf32>{%5, %6} in !stream.resource<*>{%7} -> tensor<?x?xf32, #encoding1>{%5, %6} in !stream.resource<*>{%12}
    %14 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32>{%0, %6} : index
    %15 = stream.tensor.dispatch on(#hal.device.affinity<@__device_0>) @matmul_f32f32f32_dispatch_0::@matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32[%0, %1, %5, %6](%11, %13, %0, %1, %5, %6) : (tensor<?x?xf32, #encoding>{%0, %1} in !stream.resource<*>{%10}, tensor<?x?xf32, #encoding1>{%5, %6} in !stream.resource<*>{%12}, index, index, index, index) -> tensor<?x?xf32>{%0, %6} in !stream.resource<*>{%14}
    %16 = stream.async.transfer %15 : !stream.resource<*>{%14} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<external>{%14}
    %17 = stream.tensor.export on(#hal.device.affinity<@__device_0>) %16 : tensor<?x?xf32>{%0, %6} in !stream.resource<external>{%14} -> !hal.buffer_view
    util.return %17 : !hal.buffer_view
  }
}

SpecializeEncodingsPass (Stream)link

The pass resolves the layouts based on Stream affinity analysis. It updates the encodings of all the Stream tensor ops with resolved layouts, and updates bindings with resolved layouts.

The key is using AffinityAnalysisDialectInterface to retrieve the encoding resolver.

In this example, the #iree_gpu.gpu_encoding_resolver<> is attached to the executable target configuration; it is used to resolve the layouts in the pass. There are two major interface methods used in the specialization:

  • Attribute cloneWithSimplifiedConfig(DictionaryAttr config): Attributes are immutable in MLIR concept; we don't want to duplicate the configs in IR. Thus, the encoding resolver does not have any configs; IREE uses the interface method to propagate needed information for the specialization.
  • Attribute getLayout(RankedTensorType type): Returns the serialized encoding layout for the given type.

The implementation can be found here.

The pass iterates all the stream tensor ops and replaces the verbose encodings with serialized encodings using getLayout method. In the example, that is dictionary attribute representing the MaterializeEncodingInfo struct. For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
#map0 = affine_map<(m, n, k) -> (m, k)>
#map1 = affine_map<(m, n, k) -> (k, n)>
#map2 = affine_map<(m, n, k) -> (m, n)>
#executable_target_vmvx_bytecode_fb = #hal.executable.target<"vmvx", "vmvx-bytecode-fb", {iree.encoding.resolver = #iree_cpu.vmvx_encoding_resolver<>}>
#executable_target_x86_64 = #hal.executable.target<"llvm-cpu", "xyz", {iree.encoding.resolver = #iree_cpu.cpu_encoding_resolver<>, target_triple="x86_64-xyz-xyz", cpu_features="+avx512f"}>
#executable_target_aarch64 = #hal.executable.target<"llvm-cpu", "xyz", {iree.encoding.resolver = #iree_cpu.cpu_encoding_resolver<>, target_triple="aarch64-xyz-xyz", cpu_features="+sve"}>
#device_target_local_0_ = #hal.device.target<"local", {ordinal = 0 : index}, [#executable_target_vmvx_bytecode_fb]> : !hal.device
#device_target_local_1_ = #hal.device.target<"local", {ordinal = 1 : index}, [#executable_target_x86_64]> : !hal.device
#device_target_local_2_ = #hal.device.target<"local", {ordinal = 2 : index}, [#executable_target_aarch64]> : !hal.device
#encoding = #iree_encoding.encoding<
  operand_index = 0 : index,
  op_type =  matmul,
  element_types = [f32, f32, f32],
  user_indexing_maps = [#map0, #map1, #map2]
>

util.global private @device_a = #device_target_local_0_
util.global private @device_b = #device_target_local_1_
util.global private @device_c = #device_target_local_2_
util.func public @tensor_sizeof(%d0: index, %d1: index) -> (index, index, index) {
  %size0 = stream.tensor.sizeof on(#hal.device.affinity<@device_a>) tensor<?x?xf32, #encoding>{%d0, %d1} : index
  %size1 = stream.tensor.sizeof on(#hal.device.affinity<@device_b>) tensor<?x?xf32, #encoding>{%d0, %d1} : index
  %size2 = stream.tensor.sizeof on(#hal.device.affinity<@device_c>) tensor<?x?xf32, #encoding>{%d0, %d1} : index
  util.return %size0, %size1, %size2 : index, index, index
}
// CHECK-DAG:   #[[$ENCODING0:.+]] = #iree_encoding.layout<[#iree_cpu.vmvx_encoding_resolver{{.+}}encoding_info = {innerDimsPos = [{{.+}}], innerTileSizes = [{{.+}}], outerDimsPerm = [{{.+}}]}
// CHECK-DAG:   #[[$ENCODING1:.+]] = #iree_encoding.layout<[#iree_cpu.cpu_encoding_resolver{{.+}}encoding_info = {innerDimsPos = [{{.+}}], innerTileSizes = [{{.+}}], outerDimsPerm = [{{.+}}]}
// CHECK-LABEL: util.func public @tensor_sizeof
// CHECK:         %[[D0_RES:.+]] = stream.tensor.sizeof {{.+}} tensor<?x?xf32, #[[$ENCODING0]]>
// CHECK:         %[[D1_RES:.+]] = stream.tensor.sizeof {{.+}} tensor<?x?xf32, #[[$ENCODING1]]>
// CHECK:         return %[[D0_RES]], %[[D1_RES]]

On the executable side, the encodings attached on stream.bindings are also updated with resolved layouts, which is consistent with the changes in stream tensor ops. The encodings on other operations (e.g., set_encoding) will be materialized later on in CodeGen pipeline. For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
#pipeline_layout = #hal.pipeline.layout<bindings = [
  #hal.pipeline.binding<storage_buffer>,
  #hal.pipeline.binding<storage_buffer>
]>
#executable_target = #hal.executable.target<"llvm-cpu", "xyz", {target_triple = "x86_64-xyz-xyz", cpu_features = "+avx512f", iree.encoding.resolver = #iree_cpu.cpu_encoding_resolver<>}>
#encoding = #iree_encoding.encoding<
  operand_index = 0 : index,
  op_type =  matmul,
  element_types = [f32, f32, f32],
  layouts = [#iree_cpu.cpu_encoding_layout<configuration = {
    encoding_info = {innerDimsPos = [0, 1],
                     innerTileSizes = [1, 1],
                     outerDimsPerm = [0, 1]}
  }>]>
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#encoding1 = #iree_encoding.encoding<
  operand_index = 0 : index,
  op_type =  matmul,
  element_types = [f32, f32, f32],
  user_indexing_maps = [#map, #map1, #map2],
  round_dims_to = array<i64: 1, 32, 32>>
func.func @set_encoding_LHS_with_layout() attributes {
  hal.executable.target = #executable_target
} {
  %c0 = arith.constant 0 : index
  %0 = hal.interface.binding.subspan layout(#pipeline_layout) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : !flow.dispatch.tensor<readonly:tensor<1x256xf32>>
  %1 = hal.interface.binding.subspan layout(#pipeline_layout) binding(1) alignment(64) offset(%c0) flags(Indirect)
    : !flow.dispatch.tensor<writeonly:tensor<1x256xf32, #encoding>>
  %2 = flow.dispatch.tensor.load %0, offsets = [0, 0], sizes = [1, 256], strides = [1, 1] : !flow.dispatch.tensor<readonly:tensor<1x256xf32>> -> tensor<1x256xf32>
  %3 = iree_encoding.set_encoding %2
    : tensor<1x256xf32> -> tensor<1x256xf32, #encoding1>
  flow.dispatch.tensor.store %3, %1, offsets = [0, 0], sizes = [1, 256], strides = [1, 1] : tensor<1x256xf32, #encoding1> -> !flow.dispatch.tensor<writeonly:tensor<1x256xf32, #encoding>>
  return
}
IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
#encoding = #iree_encoding.layout<[
  #iree_gpu.gpu_encoding_resolver<configuration = {encoding_info = {
    innerDimsPos = [0, 1], innerTileSizes = [128, 16], outerDimsPerm = [0, 1],
    swizzle = {expandShape = [[["CrossThread", 4 : i16], ["CrossIntrinsic", 8 : i16], ["CrossThread", 4 : i16]], [["CrossIntrinsic", 4 : i16], ["CrossThread", 4 : i16]]],
               permutation = [1, 4, 0, 2, 3]}}}>
]>
#encoding1 = #iree_encoding.layout<[
  #iree_gpu.gpu_encoding_resolver<configuration = {encoding_info = {
    innerDimsPos = [1, 0], innerTileSizes = [128, 16], outerDimsPerm = [1, 0],
    swizzle = {expandShape = [[["CrossThread", 4 : i16], ["CrossThread", 16 : i16], ["CrossIntrinsic", 2 : i16]], [["CrossIntrinsic", 4 : i16], ["CrossThread", 4 : i16]]],
               permutation = [0, 2, 4, 1, 3]}}}>
]>
#executable_target_rocm_hsaco_fb = #hal.executable.target<"rocm", "rocm-hsaco-fb", {abi = "hip", iree.encoding.resolver = #iree_gpu.gpu_encoding_resolver<>, iree_codegen.default_tuning_spec = #rocm.builtin.tuning_module<"iree_default_tuning_spec_gfx942.mlir">, iree_codegen.target_info = #iree_gpu.target<arch = "gfx942", features = "", wgp = <compute =  fp64|fp32|fp16|int64|int32|int16|int8, storage =  b64|b32|b16|b8, subgroup =  shuffle|arithmetic, dot =  dp4xi8toi32, mma = [<MFMA_F32_16x16x16_BF16>, <MFMA_F32_32x32x8_BF16>, <MFMA_F32_16x16x32_F8E5M2FNUZ>, <MFMA_F32_16x16x32_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_I32_16x16x32_I8>, <MFMA_I32_32x32x16_I8>, <MFMA_F64_16x16x4_F64>, <MFMA_F32_16x16x4_F32>, <MFMA_F32_16x16x16_F16>, <MFMA_F32_32x32x8_F16>], subgroup_size_choices = [64], max_workgroup_sizes = [1024, 1024, 1024], max_thread_count_per_workgroup = 1024, max_workgroup_memory_bytes = 65536, max_workgroup_counts = [2147483647, 2147483647, 2147483647], max_load_instruction_bits = 128, simds_per_wgp = 4, vgpr_space_bits = 16384>>, ukernels = "none"}>
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#device_target_hip = #hal.device.target<"hip", [#executable_target_rocm_hsaco_fb]> : !hal.device
#encoding2 = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
#encoding3 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
#encoding4 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul,
                                     element_types = [f32, f32, f32],
                                     user_indexing_maps = [#map, #map1, #map2],
                                     iteration_sizes = [?, ?, ?]>
module attributes {stream.affinity.default = #hal.device.affinity<@__device_0>} {
  util.global private @__device_0 = #device_target_hip
  stream.executable private @matmul_f32f32f32_dispatch_0 {
    stream.executable.export public @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32 workgroups(%arg0: index, %arg1: index, %arg2: index, %arg3: index) -> (index, index, index) {
      %x, %y, %z = iree_tensor_ext.dispatch.workgroup_count_from_slice(%arg0, %arg1, %arg2, %arg3)
      stream.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: index, %arg3: index, %arg4: index, %arg5: index, %arg6: !stream.binding) {
        %c0 = arith.constant 0 : index
        %cst = arith.constant 0.000000e+00 : f32
        %0 = iree_tensor_ext.dispatch.workload.ordinal %arg2, 0 : index
        %1 = iree_tensor_ext.dispatch.workload.ordinal %arg3, 1 : index
        %2 = iree_tensor_ext.dispatch.workload.ordinal %arg4, 2 : index
        %3 = iree_tensor_ext.dispatch.workload.ordinal %arg5, 3 : index
        %4 = stream.binding.subspan %arg0[%c0] : !stream.binding
          -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1}
        %5 = stream.binding.subspan %arg1[%c0] : !stream.binding
          -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3}
        %6 = stream.binding.subspan %arg6[%c0] : !stream.binding
          -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        %7 = iree_tensor_ext.dispatch.tensor.load %4, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1]
          : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1} -> tensor<?x?xf32, #encoding2>
        %8 = iree_tensor_ext.dispatch.tensor.load %5, offsets = [0, 0], sizes = [%2, %3], strides = [1, 1]
          : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3} -> tensor<?x?xf32, #encoding3>
        %9 = tensor.empty(%0, %3) : tensor<?x?xf32, #encoding4>
        %10 = linalg.fill ins(%cst : f32) outs(%9 : tensor<?x?xf32, #encoding4>) -> tensor<?x?xf32, #encoding4>
        %11 = linalg.matmul
          ins(%7, %8 : tensor<?x?xf32, #encoding2>, tensor<?x?xf32, #encoding3>)
          outs(%10 : tensor<?x?xf32, #encoding4>) -> tensor<?x?xf32, #encoding4>
        %12 = iree_encoding.unset_encoding %11 : tensor<?x?xf32, #encoding4> -> tensor<?x?xf32>{%0, %3}
        iree_tensor_ext.dispatch.tensor.store %12, %6, offsets = [0, 0], sizes = [%0, %3], strides = [1, 1] : tensor<?x?xf32> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        return
      }
    }
  }
  util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub, iree.reflection = {iree.abi.declaration = "sync func @matmul_f32f32f32(%input0: tensor<?x?xf32>, %input1: tensor<?x?xf32>) -> (%output0: tensor<?x?xf32>)"}} {
    %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
    %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
    %element_type_f32 = hal.element_type<f32> : i32
    %dense_row_major = hal.encoding_type<dense_row_major> : i32
    hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("input0") shape([%0, %1]) type(%element_type_f32) encoding(%dense_row_major)
    %2 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32>{%0, %1} : index
    %3 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg0 : !hal.buffer_view -> tensor<?x?xf32>{%0, %1} in !stream.resource<external>{%2}
    %4 = stream.async.transfer %3 : !stream.resource<external>{%2} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%2}
    %5 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
    %6 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
    hal.buffer_view.assert<%arg1 : !hal.buffer_view> message("input1") shape([%5, %6]) type(%element_type_f32) encoding(%dense_row_major)
    %7 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>) tensor<?x?xf32>{%5, %6} : index
    %8 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg1 : !hal.buffer_view -> tensor<?x?xf32>{%5, %6} in !stream.resource<external>{%7}
    %9 = stream.async.transfer %8 : !stream.resource<external>{%7} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%7}
    %10 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>)
      tensor<?x?xf32, #encoding>{%0, %1} : index
    %11 = stream.tensor.encode on(#hal.device.affinity<@__device_0>) %4
      : tensor<?x?xf32>{%0, %1} in !stream.resource<*>{%2} -> tensor<?x?xf32, #encoding>{%0, %1} in !stream.resource<*>{%10}
    %12 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>)
      tensor<?x?xf32, #encoding1>{%5, %6} : index
    %13 = stream.tensor.encode on(#hal.device.affinity<@__device_0>) %9
      : tensor<?x?xf32>{%5, %6} in !stream.resource<*>{%7} -> tensor<?x?xf32, #encoding1>{%5, %6} in !stream.resource<*>{%12}
    %14 = stream.tensor.sizeof on(#hal.device.affinity<@__device_0>)
      tensor<?x?xf32>{%0, %6} : index
    %15 = stream.tensor.dispatch on(#hal.device.affinity<@__device_0>)
      @matmul_f32f32f32_dispatch_0::@matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32[%0, %1, %5, %6](%11, %13, %0, %1, %5, %6)
      : (tensor<?x?xf32, #encoding>{%0, %1} in !stream.resource<*>{%10}, tensor<?x?xf32, #encoding1>{%5, %6} in !stream.resource<*>{%12}, index, index, index, index)
      -> tensor<?x?xf32>{%0, %6} in !stream.resource<*>{%14}
    %16 = stream.async.transfer %15 : !stream.resource<*>{%14} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<external>{%14}
    %17 = stream.tensor.export on(#hal.device.affinity<@__device_0>) %16 : tensor<?x?xf32>{%0, %6} in !stream.resource<external>{%14} -> !hal.buffer_view
    util.return %17 : !hal.buffer_view
  }
}
Deep dive into multi-device cases IREE deduplicates executables after it outlines dispatches to executables. It is very reasonable in a program because we do not want to generate duplicated artifacts. However, there are issues when multi-device and encodings are involved.
Take a look at the below snippet. There is an executable that set encodings on the source tensor, and there are two dispatch ops. One launch the kernel on `device_a`, and the other launch the kernel on `device_b`. It can produce wrong codegen artifacts when bindings types are encoded (i.e., the tensor type has an encoding attribute). Because they can result in different layouts. It is confusing what the input layouts for the executable because there are two possibilities. In this case, we have to duplicate the executable with updated encoding, and modify the dispatch to launch proper executable based on resolved encoding layouts.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
stream.executable private @ex {
  stream.executable.export public @set_encoding
  builtin.module {
    func.func @set_encoding(%arg0: !stream.binding, %arg1: index, %arg2: index, %arg3: !stream.binding) {
      %c0 = arith.constant 0 : index
      %0 = flow.dispatch.workload.ordinal %arg1, 0 : index
      %1 = flow.dispatch.workload.ordinal %arg2, 1 : index
      %2 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1}
      %3 = stream.binding.subspan %arg3[%c0] : !stream.binding -> !flow.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding>>{%0, %1}
      %4 = flow.dispatch.tensor.load %2, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !flow.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1} -> tensor<?x?xf32>
      %5 = iree_encoding.set_encoding %4 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding>
      flow.dispatch.tensor.store %5, %3, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : tensor<?x?xf32, #encoding> -> !flow.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding>>{%0, %1}
      return
    }
  }
}
util.func public @multi_device_set_encoding() {
  %1 = stream.tensor.dispatch on(#hal.device.affinity<@device_a>) @ex::@set_encoding(%0, %N, %K) : (tensor<?x?xf32>{%N, %K} in !stream.resource<*>{%c16}, index, index) -> (tensor<?x?xf32, #encoding>{%N, %K} in !stream.resource<*>{%c16})
  %4 = stream.tensor.dispatch on(#hal.device.affinity<@device_b>) @ex::@set_encoding(%3, %N, %K) : (tensor<?x?xf32>{%N, %K} in !stream.resource<*>{%c16}, index, index) -> (tensor<?x?xf32, #encoding>{%N, %K} in !stream.resource<*>{%c16})
  util.return
}
Thus, the SpecializeEncoding pass collects all the layout variants per executable, duplicate the executables with updated encodings, and update the dispatch op to launch the corresponding executable. See the below example.
Note that the duplication does not only look at execution affinity, but also look at the layouts for each input operands. Because the actual layout can vary based on where the input operands come from.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
#encoding = #iree_encoding.encoding<
  operand_index = 0 : index,
  op_type =  matmul,
  element_types = [f32, f32, f32],
  layouts = [#iree_encoding.specialized_encoding<123, tensor<?x?xf32>>]
>
#encoding1 = #iree_encoding.encoding<
  operand_index = 0 : index,
  op_type =  matmul,
  element_types = [f32, f32, f32],
  layouts = [#iree_encoding.specialized_encoding<456, tensor<?x?xf32>>]
>
// -------------------------------- //
// #encoding2 does not have layouts. //
// -------------------------------- //
#encoding2 = #iree_encoding.encoding<
  operand_index = 0 : index,
  op_type =  matmul,
  element_types = [f32, f32, f32],
  user_indexing_maps = [#map, #map1, #map2]
>
stream.executable private @ex {
  stream.executable.export public @set_encoding
  builtin.module {
    func.func @set_encoding(%arg0: !stream.binding, %arg1: index, %arg2: index, %arg3: !stream.binding) {
      %c0 = arith.constant 0 : index
      %0 = flow.dispatch.workload.ordinal %arg1, 0 : index
      %1 = flow.dispatch.workload.ordinal %arg2, 1 : index
      %2 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1}
      %3 = stream.binding.subspan %arg3[%c0] : !stream.binding -> !flow.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding>>{%0, %1}
      %4 = flow.dispatch.tensor.load %2, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !flow.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1} -> tensor<?x?xf32>
      %5 = iree_encoding.set_encoding %4 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding2>
      // --------------------------------------------------------------- //
      // This is the key, which is a #encoding2 -> #encoding conversion. //
      // --------------------------------------------------------------- //
      flow.dispatch.tensor.store %5, %3, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1]
        : tensor<?x?xf32, #encoding2>
        -> !flow.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding>>{%0, %1}
      return
    }
  }
}
stream.executable private @ex_dup0 {
  stream.executable.export public @set_encoding
  builtin.module {
    func.func @set_encoding(%arg0: !stream.binding, %arg1: index, %arg2: index, %arg3: !stream.binding) {
      %c0 = arith.constant 0 : index
      %0 = flow.dispatch.workload.ordinal %arg1, 0 : index
      %1 = flow.dispatch.workload.ordinal %arg2, 1 : index
      %2 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1}
      %3 = stream.binding.subspan %arg3[%c0] : !stream.binding -> !flow.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding1>>{%0, %1}
      %4 = flow.dispatch.tensor.load %2, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !flow.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1} -> tensor<?x?xf32>
      %5 = iree_encoding.set_encoding %4 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding2>
      // --------------------------------------------------------------- //
      // This is the key, which is a #encoding2 -> #encoding1 conversion. //
      // --------------------------------------------------------------- //
      flow.dispatch.tensor.store %5, %3, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1]
        : tensor<?x?xf32, #encoding2>
        -> !flow.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding1>>{%0, %1}
      return
    }
  }
}
util.func public @multi_device_set_encoding() {
  // Launch @ex::@set_encoding executable, which is specialized for the dispatch op.
  %1 = stream.tensor.dispatch on(#hal.device.affinity<@device_a>) @ex::@set_encoding(%0, %arg2, %arg3) : (tensor<?x?xf32>{%arg2, %arg3} in !stream.resource<*>{%c16}, index, index) -> tensor<?x?xf32, #encoding>{%arg2, %arg3} in !stream.resource<*>{%c16}
  // Launch @ex_dup0::@set_encoding executable, which is specialized for the dispatch op.
  %4 = stream.tensor.dispatch on(#hal.device.affinity<@device_b>) @ex_dup0::@set_encoding(%3, %arg2, %arg3) : (tensor<?x?xf32>{%arg2, %arg3} in !stream.resource<*>{%c16}, index, index) -> tensor<?x?xf32, #encoding1>{%arg2, %arg3} in !stream.resource<*>{%c16}
  util.return
}
For more examples, see the lit tests .

EncodeHostTensorsPass (Stream)link

Later on, the stream.tensor.sizeof op is lowered to the storage buffer size calculation. Since the new encoding attribute implements the SerializableAttr and it already has all the information. We are able to serve the needs from target devices.

IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view {
  %c0 = arith.constant 0 : index
  %c16 = arith.constant 16 : index
  %c128 = arith.constant 128 : index
  %c4 = arith.constant 4 : index
  %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
  %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
  %element_type_f32 = hal.element_type<f32> : i32
  %dense_row_major = hal.encoding_type<dense_row_major> : i32
  hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("input0") shape([%0, %1]) type(%element_type_f32) encoding(%dense_row_major)
  %2 = arith.muli %0, %c4 : index
  %3 = arith.muli %2, %1 : index
  %4 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg0 : !hal.buffer_view -> tensor<?x?xf32>{%0, %1} in !stream.resource<external>{%3}
  %5 = stream.async.transfer %4 : !stream.resource<external>{%3} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%3}
  %6 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
  %7 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
  hal.buffer_view.assert<%arg1 : !hal.buffer_view> message("input1") shape([%6, %7]) type(%element_type_f32) encoding(%dense_row_major)
  %8 = arith.muli %6, %c4 : index
  %9 = arith.muli %8, %7 : index
  %10 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg1 : !hal.buffer_view -> tensor<?x?xf32>{%6, %7} in !stream.resource<external>{%9}
  %11 = stream.async.transfer %10 : !stream.resource<external>{%9} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%9}
  %12 = arith.ceildivsi %0, %c128 : index
  %13 = arith.muli %12, %c128 : index
  %14 = arith.ceildivsi %1, %c16 : index
  %15 = arith.muli %14, %c16 : index
  %16 = arith.muli %13, %c4 : index
  %17 = arith.muli %16, %15 : index
  %18 = stream.tensor.encode on(#hal.device.affinity<@__device_0>) %5 : tensor<?x?xf32>{%0, %1} in !stream.resource<*>{%3} -> tensor<?x?xf32, #iree_encoding.layout<[#iree_gpu.gpu_encoding_resolver<configuration = {encoding_info = {innerDimsPos = [0, 1], innerTileSizes = [128, 16], outerDimsPerm = [0, 1], swizzle = {expandShape = [[["CrossThread", 4 : i16], ["CrossIntrinsic", 8 : i16], ["CrossThread", 4 : i16]], [["CrossIntrinsic", 4 : i16], ["CrossThread", 4 : i16]]], permutation = [1, 4, 0, 2, 3]}}}>]>>{%0, %1} in !stream.resource<*>{%17}
  %19 = arith.ceildivsi %7, %c128 : index
  %20 = arith.muli %19, %c128 : index
  %21 = arith.ceildivsi %6, %c16 : index
  %22 = arith.muli %21, %c16 : index
  %23 = arith.muli %22, %c4 : index
  %24 = arith.muli %23, %20 : index
  %25 = stream.tensor.encode on(#hal.device.affinity<@__device_0>) %11 : tensor<?x?xf32>{%6, %7} in !stream.resource<*>{%9} -> tensor<?x?xf32, #iree_encoding.layout<[#iree_gpu.gpu_encoding_resolver<configuration = {encoding_info = {innerDimsPos = [1, 0], innerTileSizes = [128, 16], outerDimsPerm = [1, 0], swizzle = {expandShape = [[["CrossThread", 4 : i16], ["CrossThread", 16 : i16], ["CrossIntrinsic", 2 : i16]], [["CrossIntrinsic", 4 : i16], ["CrossThread", 4 : i16]]], permutation = [0, 2, 4, 1, 3]}}}>]>>{%6, %7} in !stream.resource<*>{%24}
  %26 = arith.muli %0, %c4 : index
  %27 = arith.muli %26, %7 : index
  %28 = stream.async.dispatch on(#hal.device.affinity<@__device_0>) @matmul_f32f32f32_dispatch_0::@matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32[%0, %1, %6, %7](%18[%c0 to %17 for %17], %25[%c0 to %24 for %24], %0, %1, %6, %7) : (!stream.resource<*>{%17}, !stream.resource<*>{%24}, index, index, index, index) -> !stream.resource<*>{%27}
  %29 = stream.async.transfer %28 : !stream.resource<*>{%27} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<external>{%27}
  %30 = stream.tensor.export on(#hal.device.affinity<@__device_0>) %29 : tensor<?x?xf32>{%0, %7} in !stream.resource<external>{%27} -> !hal.buffer_view
  util.return %30 : !hal.buffer_view
}

MaterializeEncodingsPass (Stream)link

After the encoding specialization, all the encodings are serialized. A stream.tensor.encode op is folded away, if the source type is identical to the result type. We may still see some stream.tensor.encode ops on the host program, and it means that an actual relayout kernel is needed for the case.

The final step in the stream transformation is to materialize uniqued executables for stream.tensor.encode ops and replace them with dispatches to those executables.

IR dump after the pass
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
#encoding = #iree_encoding.layout<[#iree_gpu.gpu_encoding_resolver<configuration = {encoding_info = {innerDimsPos = [0, 1], innerTileSizes = [128, 16], outerDimsPerm = [0, 1], swizzle = {expandShape = [[["CrossThread", 4 : i16], ["CrossIntrinsic", 8 : i16], ["CrossThread", 4 : i16]], [["CrossIntrinsic", 4 : i16], ["CrossThread", 4 : i16]]], permutation = [1, 4, 0, 2, 3]}}}>]>
#encoding1 = #iree_encoding.layout<[#iree_gpu.gpu_encoding_resolver<configuration = {encoding_info = {innerDimsPos = [1, 0], innerTileSizes = [128, 16], outerDimsPerm = [1, 0], swizzle = {expandShape = [[["CrossThread", 4 : i16], ["CrossThread", 16 : i16], ["CrossIntrinsic", 2 : i16]], [["CrossIntrinsic", 4 : i16], ["CrossThread", 4 : i16]]], permutation = [0, 2, 4, 1, 3]}}}>]>
#executable_target_rocm_hsaco_fb = #hal.executable.target<"rocm", "rocm-hsaco-fb", {abi = "hip", iree.encoding.resolver = #iree_gpu.gpu_encoding_resolver<>, iree_codegen.default_tuning_spec = #rocm.builtin.tuning_module<"iree_default_tuning_spec_gfx942.mlir">, iree_codegen.target_info = #iree_gpu.target<arch = "gfx942", features = "", wgp = <compute =  fp64|fp32|fp16|int64|int32|int16|int8, storage =  b64|b32|b16|b8, subgroup =  shuffle|arithmetic, dot =  dp4xi8toi32, mma = [<MFMA_F32_16x16x16_BF16>, <MFMA_F32_32x32x8_BF16>, <MFMA_F32_16x16x32_F8E5M2FNUZ>, <MFMA_F32_16x16x32_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ>, <MFMA_F32_16x16x32_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ>, <MFMA_F32_32x32x16_F8E5M2FNUZ_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ>, <MFMA_F32_32x32x16_F8E4M3FNUZ_F8E5M2FNUZ>, <MFMA_I32_16x16x32_I8>, <MFMA_I32_32x32x16_I8>, <MFMA_F64_16x16x4_F64>, <MFMA_F32_16x16x4_F32>, <MFMA_F32_16x16x16_F16>, <MFMA_F32_32x32x8_F16>], subgroup_size_choices = [64], max_workgroup_sizes = [1024, 1024, 1024], max_thread_count_per_workgroup = 1024, max_workgroup_memory_bytes = 65536, max_workgroup_counts = [2147483647, 2147483647, 2147483647], max_load_instruction_bits = 128, simds_per_wgp = 4, vgpr_space_bits = 16384>>, ukernels = "none"}>
#map = affine_map<(d0, d1, d2) -> (d0, d2)>
#map1 = affine_map<(d0, d1, d2) -> (d2, d1)>
#map2 = affine_map<(d0, d1, d2) -> (d0, d1)>
#device_target_hip = #hal.device.target<"hip", [#executable_target_rocm_hsaco_fb]> : !hal.device
#encoding2 = #iree_encoding.encoding<operand_index = 0 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
#encoding3 = #iree_encoding.encoding<operand_index = 1 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
#encoding4 = #iree_encoding.encoding<operand_index = 2 : index, op_type =  matmul, element_types = [f32, f32, f32], user_indexing_maps = [#map, #map1, #map2], iteration_sizes = [?, ?, ?]>
module attributes {stream.affinity.default = #hal.device.affinity<@__device_0>} {
  util.global private @__device_0 = #device_target_hip
  stream.executable private @matmul_f32f32f32_dispatch_0 {
    stream.executable.export public @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32 workgroups(%arg0: index, %arg1: index, %arg2: index, %arg3: index) -> (index, index, index) {
      %x, %y, %z = iree_tensor_ext.dispatch.workgroup_count_from_slice(%arg0, %arg1, %arg2, %arg3)
      stream.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: index, %arg3: index, %arg4: index, %arg5: index, %arg6: !stream.binding) {
        %c0 = arith.constant 0 : index
        %cst = arith.constant 0.000000e+00 : f32
        %0 = iree_tensor_ext.dispatch.workload.ordinal %arg2, 0 : index
        %1 = iree_tensor_ext.dispatch.workload.ordinal %arg3, 1 : index
        %2 = iree_tensor_ext.dispatch.workload.ordinal %arg4, 2 : index
        %3 = iree_tensor_ext.dispatch.workload.ordinal %arg5, 3 : index
        %4 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1}
        %5 = stream.binding.subspan %arg1[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3}
        %6 = stream.binding.subspan %arg6[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        %7 = iree_tensor_ext.dispatch.tensor.load %4, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding>>{%0, %1} -> tensor<?x?xf32, #encoding2>
        %8 = iree_tensor_ext.dispatch.tensor.load %5, offsets = [0, 0], sizes = [%2, %3], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32, #encoding1>>{%2, %3} -> tensor<?x?xf32, #encoding3>
        %9 = tensor.empty(%0, %3) : tensor<?x?xf32, #encoding4>
        %10 = linalg.fill ins(%cst : f32) outs(%9 : tensor<?x?xf32, #encoding4>) -> tensor<?x?xf32, #encoding4>
        %11 = linalg.matmul ins(%7, %8 : tensor<?x?xf32, #encoding2>, tensor<?x?xf32, #encoding3>) outs(%10 : tensor<?x?xf32, #encoding4>) -> tensor<?x?xf32, #encoding4>
        %12 = iree_encoding.unset_encoding %11 : tensor<?x?xf32, #encoding4> -> tensor<?x?xf32>{%0, %3}
        iree_tensor_ext.dispatch.tensor.store %12, %6, offsets = [0, 0], sizes = [%0, %3], strides = [1, 1] : tensor<?x?xf32> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%0, %3}
        return
      }
    }
  }
  stream.executable private @_encoding_0 {
    stream.executable.export public @_encoding_0_encode_DxDxf32_to_DxDxf32 workgroups(%arg0: index, %arg1: index, %arg2: index, %arg3: index) -> (index, index, index) {
      %x, %y, %z = iree_tensor_ext.dispatch.workgroup_count_from_slice(%arg0, %arg1, %arg2, %arg3)
      stream.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @_encoding_0_encode_DxDxf32_to_DxDxf32(%arg0: !stream.binding, %arg1: index, %arg2: index, %arg3: index, %arg4: index, %arg5: !stream.binding) {
        %0 = iree_tensor_ext.dispatch.workload.ordinal %arg1, 0 : index
        %1 = iree_tensor_ext.dispatch.workload.ordinal %arg2, 1 : index
        %2 = iree_tensor_ext.dispatch.workload.ordinal %arg3, 2 : index
        %3 = iree_tensor_ext.dispatch.workload.ordinal %arg4, 3 : index
        %c0 = arith.constant 0 : index
        %4 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1}
        %5 = stream.binding.subspan %arg5[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding>>{%2, %3}
        %6 = iree_tensor_ext.dispatch.tensor.load %4, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1} -> tensor<?x?xf32>
        %7 = iree_encoding.set_encoding %6 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding>
        iree_tensor_ext.dispatch.tensor.store %7, %5, offsets = [0, 0], sizes = [%2, %3], strides = [1, 1] : tensor<?x?xf32, #encoding> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding>>{%2, %3}
        return
      }
    }
  }
  stream.executable private @_encoding_1 {
    stream.executable.export public @_encoding_1_encode_DxDxf32_to_DxDxf32 workgroups(%arg0: index, %arg1: index, %arg2: index, %arg3: index) -> (index, index, index) {
      %x, %y, %z = iree_tensor_ext.dispatch.workgroup_count_from_slice(%arg0, %arg1, %arg2, %arg3)
      stream.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @_encoding_1_encode_DxDxf32_to_DxDxf32(%arg0: !stream.binding, %arg1: index, %arg2: index, %arg3: index, %arg4: index, %arg5: !stream.binding) {
        %0 = iree_tensor_ext.dispatch.workload.ordinal %arg1, 0 : index
        %1 = iree_tensor_ext.dispatch.workload.ordinal %arg2, 1 : index
        %2 = iree_tensor_ext.dispatch.workload.ordinal %arg3, 2 : index
        %3 = iree_tensor_ext.dispatch.workload.ordinal %arg4, 3 : index
        %c0 = arith.constant 0 : index
        %4 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1}
        %5 = stream.binding.subspan %arg5[%c0] : !stream.binding -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding1>>{%2, %3}
        %6 = iree_tensor_ext.dispatch.tensor.load %4, offsets = [0, 0], sizes = [%0, %1], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%0, %1} -> tensor<?x?xf32>
        %7 = iree_encoding.set_encoding %6 : tensor<?x?xf32> -> tensor<?x?xf32, #encoding1>
        iree_tensor_ext.dispatch.tensor.store %7, %5, offsets = [0, 0], sizes = [%2, %3], strides = [1, 1] : tensor<?x?xf32, #encoding1> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32, #encoding1>>{%2, %3}
        return
      }
    }
  }
  util.func public @matmul_f32f32f32(%arg0: !hal.buffer_view, %arg1: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub, iree.reflection = {iree.abi.declaration = "sync func @matmul_f32f32f32(%input0: tensor<?x?xf32>, %input1: tensor<?x?xf32>) -> (%output0: tensor<?x?xf32>)"}} {
    %c0 = arith.constant 0 : index
    %c16 = arith.constant 16 : index
    %c128 = arith.constant 128 : index
    %c4 = arith.constant 4 : index
    %0 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[0] : index
    %1 = hal.buffer_view.dim<%arg0 : !hal.buffer_view>[1] : index
    %element_type_f32 = hal.element_type<f32> : i32
    %dense_row_major = hal.encoding_type<dense_row_major> : i32
    hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("input0") shape([%0, %1]) type(%element_type_f32) encoding(%dense_row_major)
    %2 = arith.muli %0, %c4 : index
    %3 = arith.muli %2, %1 : index
    %4 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg0 : !hal.buffer_view -> tensor<?x?xf32>{%0, %1} in !stream.resource<external>{%3}
    %5 = stream.async.transfer %4 : !stream.resource<external>{%3} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%3}
    %6 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[0] : index
    %7 = hal.buffer_view.dim<%arg1 : !hal.buffer_view>[1] : index
    hal.buffer_view.assert<%arg1 : !hal.buffer_view> message("input1") shape([%6, %7]) type(%element_type_f32) encoding(%dense_row_major)
    %8 = arith.muli %6, %c4 : index
    %9 = arith.muli %8, %7 : index
    %10 = stream.tensor.import on(#hal.device.affinity<@__device_0>) %arg1 : !hal.buffer_view -> tensor<?x?xf32>{%6, %7} in !stream.resource<external>{%9}
    %11 = stream.async.transfer %10 : !stream.resource<external>{%9} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<*>{%9}
    %12 = arith.ceildivsi %0, %c128 : index
    %13 = arith.muli %12, %c128 : index
    %14 = arith.ceildivsi %1, %c16 : index
    %15 = arith.muli %14, %c16 : index
    %16 = arith.muli %13, %c4 : index
    %17 = arith.muli %16, %15 : index
    %c0_0 = arith.constant 0 : index
    %18 = stream.async.dispatch on(#hal.device.affinity<@__device_0>) @_encoding_0::@_encoding_0_encode_DxDxf32_to_DxDxf32[%0, %1, %0, %1](%5[%c0_0 to %3 for %3], %0, %1, %0, %1) : (!stream.resource<*>{%3}, index, index, index, index) -> !stream.resource<*>{%17}
    %19 = arith.ceildivsi %7, %c128 : index
    %20 = arith.muli %19, %c128 : index
    %21 = arith.ceildivsi %6, %c16 : index
    %22 = arith.muli %21, %c16 : index
    %23 = arith.muli %22, %c4 : index
    %24 = arith.muli %23, %20 : index
    %c0_1 = arith.constant 0 : index
    %25 = stream.async.dispatch on(#hal.device.affinity<@__device_0>) @_encoding_1::@_encoding_1_encode_DxDxf32_to_DxDxf32[%6, %7, %6, %7](%11[%c0_1 to %9 for %9], %6, %7, %6, %7) : (!stream.resource<*>{%9}, index, index, index, index) -> !stream.resource<*>{%24}
    %26 = arith.muli %0, %c4 : index
    %27 = arith.muli %26, %7 : index
    %28 = stream.async.dispatch on(#hal.device.affinity<@__device_0>) @matmul_f32f32f32_dispatch_0::@matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32[%0, %1, %6, %7](%18[%c0 to %17 for %17], %25[%c0 to %24 for %24], %0, %1, %6, %7) : (!stream.resource<*>{%17}, !stream.resource<*>{%24}, index, index, index, index) -> !stream.resource<*>{%27}
    %29 = stream.async.transfer %28 : !stream.resource<*>{%27} from(#hal.device.affinity<@__device_0>) -> to(#hal.device.affinity<@__device_0>) !stream.resource<external>{%27}
    %30 = stream.tensor.export on(#hal.device.affinity<@__device_0>) %29 : tensor<?x?xf32>{%0, %7} in !stream.resource<external>{%27} -> !hal.buffer_view
    util.return %30 : !hal.buffer_view
  }
}

Code Generation (Target-Dependent)link

The post is using GPU as an example, but most context can be shared between backends. E.g., materializing operations that have encodings is a common step between backends. The only difference is how a resolver is implemented.

MaterializeDeviceEncodingPasslink

The first step in code-generation is to materialize the ops that have encodings. The pass uses the encoding resolver to do the conversion, and the patterns can be found in MaterializeEncodingPatterns.cpp:

  • The interface binding ops and load/store ops are replaced with the same op on packed domain.
  • The SetEncodingOp and UnSetEncodingOp are materialized to relayout ops, e.g., linalg.pack, linalg.unpack, etc.
  • The compute ops, e.g., linalg.matmul, are replaced with the ops without encodings. In the example, the GPU encoding resolver lowers linalg.matmul to iree_codegen.inner_tiled ops. The implementation is done by interface methods.

After the encoding materialization, the code-generation pipeline is as the same as regular input. In the example, they all go down to GPU TileAndFuse pipeline.

IR Dumplink

Gemm IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32() {
  %c1 = arith.constant 1 : index
  %c32_i64 = arith.constant 32 : i64
  %cst = arith.constant 0.000000e+00 : f32
  %c0 = arith.constant 0 : index
  %0 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(0) : i32
  %1 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(1) : i32
  %2 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(2) : i32
  %3 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(3) : i32
  %4 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(4) : i32
  %5 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(5) : i32
  %6 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(6) : i32
  %7 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(7) : i32
  %8 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(8) : i32
  %9 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(9) : i32
  %10 = arith.extui %0 : i32 to i64
  %11 = arith.extui %1 : i32 to i64
  %12 = arith.shli %11, %c32_i64 : i64
  %13 = arith.ori %10, %12 : i64
  %14 = arith.index_castui %13 : i64 to index
  %15 = arith.extui %2 : i32 to i64
  %16 = arith.extui %3 : i32 to i64
  %17 = arith.shli %16, %c32_i64 : i64
  %18 = arith.ori %15, %17 : i64
  %19 = arith.index_castui %18 : i64 to index
  %20 = arith.extui %4 : i32 to i64
  %21 = arith.extui %5 : i32 to i64
  %22 = arith.shli %21, %c32_i64 : i64
  %23 = arith.ori %20, %22 : i64
  %24 = arith.index_castui %23 : i64 to index
  %25 = arith.extui %6 : i32 to i64
  %26 = arith.extui %7 : i32 to i64
  %27 = arith.shli %26, %c32_i64 : i64
  %28 = arith.ori %25, %27 : i64
  %29 = arith.index_castui %28 : i64 to index
  %30 = arith.extui %8 : i32 to i64
  %31 = arith.extui %9 : i32 to i64
  %32 = arith.shli %31, %c32_i64 : i64
  %33 = arith.ori %30, %32 : i64
  %34 = arith.index_castui %33 : i64 to index
  %35:5 = util.assume.int
      %14<udiv = 8192>,
      %19<umin = 0, umax = 9007199254740991>,
      %24<umin = 0, umax = 9007199254740991>,
      %29<umin = 0, umax = 9007199254740991>,
      %34<umin = 0, umax = 9007199254740991>
    : index, index, index, index, index
  %36 = iree_tensor_ext.dispatch.workload.ordinal %35#1, 0 : index
  %37 = iree_tensor_ext.dispatch.workload.ordinal %35#2, 1 : index
  %38 = iree_tensor_ext.dispatch.workload.ordinal %35#3, 2 : index
  %39 = iree_tensor_ext.dispatch.workload.ordinal %35#4, 3 : index
  %40 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%36]
  %41 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%37]
  %42 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?x8x4x4x4x4xf32>>{%40, %41}
  %43 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%39]
  %44 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%38]
  %45 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%35#0) flags("ReadOnly|Indirect") : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?x4x2x4x16x4xf32>>{%43, %44}
  %46 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%36, %39}
  %47 = iree_tensor_ext.dispatch.tensor.load %42, offsets = [0, 0, 0, 0, 0, 0, 0], sizes = [%40, %41, 8, 4, 4, 4, 4], strides = [1, 1, 1, 1, 1, 1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?x8x4x4x4x4xf32>>{%40, %41} -> tensor<?x?x8x4x4x4x4xf32>
  %48 = iree_tensor_ext.dispatch.tensor.load %45, offsets = [0, 0, 0, 0, 0, 0, 0], sizes = [%43, %44, 4, 2, 4, 16, 4], strides = [1, 1, 1, 1, 1, 1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?x4x2x4x16x4xf32>>{%43, %44} -> tensor<?x?x4x2x4x16x4xf32>
  %49 = tensor.empty(%40, %43) : tensor<?x?x4x8x2x4x16x4xf32>
  %50 = linalg.fill ins(%cst : f32) outs(%49 : tensor<?x?x4x8x2x4x16x4xf32>) -> tensor<?x?x4x8x2x4x16x4xf32>
  %51 = iree_codegen.inner_tiled ins(%47, %48) outs(%50) {indexing_maps = [affine_map<(d0, d1, d2) -> (d0, d2)>, affine_map<(d0, d1, d2) -> (d1, d2)>, affine_map<(d0, d1, d2) -> (d0, d1)>], iterator_types = [#linalg.iterator_type<parallel>, #linalg.iterator_type<parallel>, #linalg.iterator_type<reduction>], kind = #iree_gpu.data_tiled_mma_layout<intrinsic = MFMA_F32_16x16x4_F32, intrinsics_m = 8, intrinsics_n = 2, subgroups_n = 4, intrinsics_k = 4>} : tensor<?x?x8x4x4x4x4xf32>, tensor<?x?x4x2x4x16x4xf32> into tensor<?x?x4x8x2x4x16x4xf32>
  %dim = tensor.dim %51, %c0 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_0 = tensor.dim %51, %c1 : tensor<?x?x4x8x2x4x16x4xf32>
  %52 = tensor.empty(%dim, %dim_0) : tensor<?x?x4x8x4x4x16x2xf32>
  %transposed = linalg.transpose ins(%51 : tensor<?x?x4x8x2x4x16x4xf32>) outs(%52 : tensor<?x?x4x8x4x4x16x2xf32>) permutation = [0, 1, 5, 3, 7, 2, 6, 4]
  %collapsed = tensor.collapse_shape %transposed [[0], [1], [2, 3, 4], [5, 6, 7]] : tensor<?x?x4x8x4x4x16x2xf32> into tensor<?x?x128x128xf32>
  %53 = tensor.empty(%36, %39) : tensor<?x?xf32>
  %unpack = linalg.unpack %collapsed outer_dims_perm = [0, 1] inner_dims_pos = [0, 1] inner_tiles = [128, 128] into %53 : tensor<?x?x128x128xf32> -> tensor<?x?xf32>
  iree_tensor_ext.dispatch.tensor.store %unpack, %46, offsets = [0, 0], sizes = [%36, %39], strides = [1, 1] : tensor<?x?xf32> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%36, %39}
  return
}
Relayout IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
func.func @_encoding_0_encode_DxDxf32_to_DxDxf32() {
  %cst = arith.constant 0.000000e+00 : f32
  %c32_i64 = arith.constant 32 : i64
  %c0 = arith.constant 0 : index
  %0 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(0) : i32
  %1 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(1) : i32
  %2 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(2) : i32
  %3 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(3) : i32
  %4 = arith.extui %0 : i32 to i64
  %5 = arith.extui %1 : i32 to i64
  %6 = arith.shli %5, %c32_i64 : i64
  %7 = arith.ori %4, %6 : i64
  %8 = arith.index_castui %7 : i64 to index
  %9 = arith.extui %2 : i32 to i64
  %10 = arith.extui %3 : i32 to i64
  %11 = arith.shli %10, %c32_i64 : i64
  %12 = arith.ori %9, %11 : i64
  %13 = arith.index_castui %12 : i64 to index
  %14:4 = util.assume.int
      %8<umin = 0, umax = 9007199254740991>,
      %13<umin = 0, umax = 9007199254740991>,
      %8<umin = 0, umax = 9007199254740991>,
      %13<umin = 0, umax = 9007199254740991>
    : index, index, index, index
  %15 = iree_tensor_ext.dispatch.workload.ordinal %14#0, 0 : index
  %16 = iree_tensor_ext.dispatch.workload.ordinal %14#1, 1 : index
  %17 = iree_tensor_ext.dispatch.workload.ordinal %14#2, 2 : index
  %18 = iree_tensor_ext.dispatch.workload.ordinal %14#3, 3 : index
  %19 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%15, %16}
  %20 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%17]
  %21 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%18]
  %22 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?x8x4x4x4x4xf32>>{%20, %21}
  %23 = iree_tensor_ext.dispatch.tensor.load %19, offsets = [0, 0], sizes = [%15, %16], strides = [1, 1] : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%15, %16} -> tensor<?x?xf32>
  %24 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%15]
  %25 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%16]
  %26 = tensor.empty(%24, %25) : tensor<?x?x128x16xf32>
  %pack = linalg.pack %23 padding_value(%cst : f32) outer_dims_perm = [0, 1] inner_dims_pos = [0, 1] inner_tiles = [128, 16] into %26 : tensor<?x?xf32> -> tensor<?x?x128x16xf32>
  %expanded = tensor.expand_shape %pack [[0], [1], [2, 3, 4], [5, 6]] output_shape [%24, %25, 4, 8, 4, 4, 4] : tensor<?x?x128x16xf32> into tensor<?x?x4x8x4x4x4xf32>
  %27 = tensor.empty(%24, %25) : tensor<?x?x8x4x4x4x4xf32>
  %transposed = linalg.transpose ins(%expanded : tensor<?x?x4x8x4x4x4xf32>) outs(%27 : tensor<?x?x8x4x4x4x4xf32>) permutation = [0, 1, 3, 6, 2, 4, 5]
  iree_tensor_ext.dispatch.tensor.store %transposed, %22, offsets = [0, 0, 0, 0, 0, 0, 0], sizes = [%20, %21, 8, 4, 4, 4, 4], strides = [1, 1, 1, 1, 1, 1, 1] : tensor<?x?x8x4x4x4x4xf32> -> !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?x8x4x4x4x4xf32>>{%20, %21}
  return
}

Challenge: Code Generation for Index Remappinglink

Index remapping is hard, because some ops do not implement TilingInterface. IREE develops LinalgExt::MapScatterOp to represent the index remapping. Since unpack ops have slicing semantics, the LinalgExt::MapScatterOp yields an additional i1 value that represents the mask.

Furthermore, linalg.pack ops have padding semantics; it is really hard to represent such indexing remapping in pure tensor world, because the index space is not 1-1 mapping and it requires padding values getting written.

IREE takes an early bufferization approach, that bufferizes the boundaries and capture the core operations on tensors. If there are padding, it generates a scf.forall op that writes the padding value.

The design idea is using the same codegen pipeline even if relayout ops are fused within the dispatch region. E.g., developers do not need to rework on the codegen of attention dispatches because the fusion happens automatically in the case.

BufferizeDispatchTensorLoadStorePasslink

The pass bufferizes the edges of dispatch regions, converting iree_tensor_ext.dispatch.tensor.load ops to iree_codegen.load_from_buffer, and iree_tensor_ext.dispatch.tensor.store ops to iree_codegen.store_to_buffer.

Gemm IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32() {
  %c32_i64 = arith.constant 32 : i64
  %cst = arith.constant 0.000000e+00 : f32
  %c0 = arith.constant 0 : index
  %0 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(0) : i32
  %1 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(1) : i32
  %2 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(2) : i32
  %3 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(3) : i32
  %4 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(4) : i32
  %5 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(5) : i32
  %6 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(6) : i32
  %7 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(7) : i32
  %8 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(8) : i32
  %9 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(9) : i32
  %10 = arith.extui %0 : i32 to i64
  %11 = arith.extui %1 : i32 to i64
  %12 = arith.shli %11, %c32_i64 : i64
  %13 = arith.ori %10, %12 : i64
  %14 = arith.index_castui %13 : i64 to index
  %15 = arith.extui %2 : i32 to i64
  %16 = arith.extui %3 : i32 to i64
  %17 = arith.shli %16, %c32_i64 : i64
  %18 = arith.ori %15, %17 : i64
  %19 = arith.index_castui %18 : i64 to index
  %20 = arith.extui %4 : i32 to i64
  %21 = arith.extui %5 : i32 to i64
  %22 = arith.shli %21, %c32_i64 : i64
  %23 = arith.ori %20, %22 : i64
  %24 = arith.index_castui %23 : i64 to index
  %25 = arith.extui %6 : i32 to i64
  %26 = arith.extui %7 : i32 to i64
  %27 = arith.shli %26, %c32_i64 : i64
  %28 = arith.ori %25, %27 : i64
  %29 = arith.index_castui %28 : i64 to index
  %30 = arith.extui %8 : i32 to i64
  %31 = arith.extui %9 : i32 to i64
  %32 = arith.shli %31, %c32_i64 : i64
  %33 = arith.ori %30, %32 : i64
  %34 = arith.index_castui %33 : i64 to index
  %35:5 = util.assume.int
      %14<udiv = 8192>,
      %19<umin = 0, umax = 9007199254740991>,
      %24<umin = 0, umax = 9007199254740991>,
      %29<umin = 0, umax = 9007199254740991>,
      %34<umin = 0, umax = 9007199254740991>
    : index, index, index, index, index
  %36 = iree_tensor_ext.dispatch.workload.ordinal %35#1, 0 : index
  %37 = iree_tensor_ext.dispatch.workload.ordinal %35#2, 1 : index
  %38 = iree_tensor_ext.dispatch.workload.ordinal %35#3, 2 : index
  %39 = iree_tensor_ext.dispatch.workload.ordinal %35#4, 3 : index
  %40 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%36]
  %41 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%37]
  %42 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>{%40, %41}
  %43 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?x8x4x4x4x4xf32>>{%40, %41}
  %44 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%39]
  %45 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%38]
  %46 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%35#0) flags("ReadOnly|Indirect") : memref<?x?x4x2x4x16x4xf32, strided<[?, 2048, 512, 256, 64, 4, 1], offset: ?>, #hal.descriptor_type<storage_buffer>>{%44, %45}
  %47 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%35#0) flags("ReadOnly|Indirect") : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?x4x2x4x16x4xf32>>{%44, %45}
  %48 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : memref<?x?xf32, #hal.descriptor_type<storage_buffer>>{%36, %39}
  %49 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?xf32>>{%36, %39}
  %50 = iree_codegen.load_from_buffer %42 : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>> -> tensor<?x?x8x4x4x4x4xf32>
  %51 = iree_codegen.load_from_buffer %46 : memref<?x?x4x2x4x16x4xf32, strided<[?, 2048, 512, 256, 64, 4, 1], offset: ?>, #hal.descriptor_type<storage_buffer>> -> tensor<?x?x4x2x4x16x4xf32>
  %52 = tensor.empty(%40, %44) : tensor<?x?x4x8x2x4x16x4xf32>
  %53 = linalg.fill ins(%cst : f32) outs(%52 : tensor<?x?x4x8x2x4x16x4xf32>) -> tensor<?x?x4x8x2x4x16x4xf32>
  %54 = iree_codegen.inner_tiled ins(%50, %51) outs(%53) {indexing_maps = [affine_map<(d0, d1, d2) -> (d0, d2)>, affine_map<(d0, d1, d2) -> (d1, d2)>, affine_map<(d0, d1, d2) -> (d0, d1)>], iterator_types = [#linalg.iterator_type<parallel>, #linalg.iterator_type<parallel>, #linalg.iterator_type<reduction>], kind = #iree_gpu.data_tiled_mma_layout<intrinsic = MFMA_F32_16x16x4_F32, intrinsics_m = 8, intrinsics_n = 2, subgroups_n = 4, intrinsics_k = 4>} : tensor<?x?x8x4x4x4x4xf32>, tensor<?x?x4x2x4x16x4xf32> into tensor<?x?x4x8x2x4x16x4xf32>
  %55 = tensor.empty(%40, %44) : tensor<?x?x4x8x4x4x16x2xf32>
  %56 = linalg.generic {indexing_maps = [affine_map<(d0, d1, d2, d3, d4, d5, d6, d7) -> (d0, d1, d5, d3, d7, d2, d6, d4)>, affine_map<(d0, d1, d2, d3, d4, d5, d6, d7) -> (d0, d1, d2, d3, d4, d5, d6, d7)>], iterator_types = ["parallel", "parallel", "parallel", "parallel", "parallel", "parallel", "parallel", "parallel"]} ins(%54 : tensor<?x?x4x8x2x4x16x4xf32>) outs(%55 : tensor<?x?x4x8x4x4x16x2xf32>) {
  ^bb0(%in: f32, %out: f32):
    linalg.yield %in : f32
  } -> tensor<?x?x4x8x4x4x16x2xf32>
  %collapsed = tensor.collapse_shape %56 [[0], [1], [2, 3, 4], [5, 6, 7]] : tensor<?x?x4x8x4x4x16x2xf32> into tensor<?x?x128x128xf32>
  %57 = tensor.empty(%36, %39) : tensor<?x?xf32>
  %unpack = linalg.unpack %collapsed outer_dims_perm = [0, 1] inner_dims_pos = [0, 1] inner_tiles = [128, 128] into %57 : tensor<?x?x128x128xf32> -> tensor<?x?xf32>
  iree_codegen.store_to_buffer %unpack, %48 : tensor<?x?xf32> into memref<?x?xf32, #hal.descriptor_type<storage_buffer>>
  return
}
Relayout IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
func.func @_encoding_0_encode_DxDxf32_to_DxDxf32() {
  %cst = arith.constant 0.000000e+00 : f32
  %c32_i64 = arith.constant 32 : i64
  %c0 = arith.constant 0 : index
  %0 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(0) : i32
  %1 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(1) : i32
  %2 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(2) : i32
  %3 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(3) : i32
  %4 = arith.extui %0 : i32 to i64
  %5 = arith.extui %1 : i32 to i64
  %6 = arith.shli %5, %c32_i64 : i64
  %7 = arith.ori %4, %6 : i64
  %8 = arith.index_castui %7 : i64 to index
  %9 = arith.extui %2 : i32 to i64
  %10 = arith.extui %3 : i32 to i64
  %11 = arith.shli %10, %c32_i64 : i64
  %12 = arith.ori %9, %11 : i64
  %13 = arith.index_castui %12 : i64 to index
  %14:2 = util.assume.int
      %8<umin = 0, umax = 9007199254740991>,
      %13<umin = 0, umax = 9007199254740991>
    : index, index
  %15 = iree_tensor_ext.dispatch.workload.ordinal %14#0, 0 : index
  %16 = iree_tensor_ext.dispatch.workload.ordinal %14#1, 1 : index
  %17 = iree_tensor_ext.dispatch.workload.ordinal %14#0, 2 : index
  %18 = iree_tensor_ext.dispatch.workload.ordinal %14#1, 3 : index
  %19 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : memref<?x?xf32, #hal.descriptor_type<storage_buffer>>{%15, %16}
  %20 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : !iree_tensor_ext.dispatch.tensor<readonly:tensor<?x?xf32>>{%15, %16}
  %21 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%17]
  %22 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%18]
  %23 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>{%21, %22}
  %24 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : !iree_tensor_ext.dispatch.tensor<writeonly:tensor<?x?x8x4x4x4x4xf32>>{%21, %22}
  %25 = iree_codegen.load_from_buffer %19 : memref<?x?xf32, #hal.descriptor_type<storage_buffer>> -> tensor<?x?xf32>
  %26 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%15]
  %27 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%16]
  %28 = tensor.empty(%26, %27) : tensor<?x?x128x16xf32>
  %pack = linalg.pack %25 padding_value(%cst : f32) outer_dims_perm = [0, 1] inner_dims_pos = [0, 1] inner_tiles = [128, 16] into %28 : tensor<?x?xf32> -> tensor<?x?x128x16xf32>
  %expanded = tensor.expand_shape %pack [[0], [1], [2, 3, 4], [5, 6]] output_shape [%26, %27, 4, 8, 4, 4, 4] : tensor<?x?x128x16xf32> into tensor<?x?x4x8x4x4x4xf32>
  %29 = tensor.empty(%26, %27) : tensor<?x?x8x4x4x4x4xf32>
  %30 = linalg.generic {indexing_maps = [affine_map<(d0, d1, d2, d3, d4, d5, d6) -> (d0, d1, d4, d2, d5, d6, d3)>, affine_map<(d0, d1, d2, d3, d4, d5, d6) -> (d0, d1, d2, d3, d4, d5, d6)>], iterator_types = ["parallel", "parallel", "parallel", "parallel", "parallel", "parallel", "parallel"]} ins(%expanded : tensor<?x?x4x8x4x4x4xf32>) outs(%29 : tensor<?x?x8x4x4x4x4xf32>) {
  ^bb0(%in: f32, %out: f32):
    linalg.yield %in : f32
  } -> tensor<?x?x8x4x4x4x4xf32>
  iree_codegen.store_to_buffer %30, %23 : tensor<?x?x8x4x4x4x4xf32> into memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>
  return
}

GPUCombineLayoutTransformationPasslink

Starting from iree_codegen.store_to_buffer ops, iteratively combine producer layout/indexing transformation ops (linalg.transpose, tensor.collapse_shape, etc.) into a single iree_linalg_ext.map_scatter operation. For tensor.pad ops, the writing of pad values is distributed to workgroups and threads, and then the padding values are written directly to the output buffer of the iree_codegen.store_to_buffer op.

IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
func.func @matmul_f32f32f32_dispatch_0_matmul_DxDxD_f32() {
  %c1 = arith.constant 1 : index
  %c32_i64 = arith.constant 32 : i64
  %cst = arith.constant 0.000000e+00 : f32
  %c0 = arith.constant 0 : index
  %0 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(0) : i32
  %1 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(1) : i32
  %2 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(2) : i32
  %3 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(3) : i32
  %4 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(4) : i32
  %5 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(5) : i32
  %6 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(6) : i32
  %7 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(7) : i32
  %8 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(8) : i32
  %9 = hal.interface.constant.load layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(9) : i32
  %10 = arith.extui %0 : i32 to i64
  %11 = arith.extui %1 : i32 to i64
  %12 = arith.shli %11, %c32_i64 : i64
  %13 = arith.ori %10, %12 : i64
  %14 = arith.index_castui %13 : i64 to index
  %15 = arith.extui %2 : i32 to i64
  %16 = arith.extui %3 : i32 to i64
  %17 = arith.shli %16, %c32_i64 : i64
  %18 = arith.ori %15, %17 : i64
  %19 = arith.index_castui %18 : i64 to index
  %20 = arith.extui %4 : i32 to i64
  %21 = arith.extui %5 : i32 to i64
  %22 = arith.shli %21, %c32_i64 : i64
  %23 = arith.ori %20, %22 : i64
  %24 = arith.index_castui %23 : i64 to index
  %25 = arith.extui %6 : i32 to i64
  %26 = arith.extui %7 : i32 to i64
  %27 = arith.shli %26, %c32_i64 : i64
  %28 = arith.ori %25, %27 : i64
  %29 = arith.index_castui %28 : i64 to index
  %30 = arith.extui %8 : i32 to i64
  %31 = arith.extui %9 : i32 to i64
  %32 = arith.shli %31, %c32_i64 : i64
  %33 = arith.ori %30, %32 : i64
  %34 = arith.index_castui %33 : i64 to index
  %35:5 = util.assume.int
      %14<udiv = 8192>,
      %19<umin = 0, umax = 9007199254740991>,
      %24<umin = 0, umax = 9007199254740991>,
      %29<umin = 0, umax = 9007199254740991>,
      %34<umin = 0, umax = 9007199254740991>
    : index, index, index, index, index
  %36 = iree_tensor_ext.dispatch.workload.ordinal %35#1, 0 : index
  %37 = iree_tensor_ext.dispatch.workload.ordinal %35#2, 1 : index
  %38 = iree_tensor_ext.dispatch.workload.ordinal %35#3, 2 : index
  %39 = iree_tensor_ext.dispatch.workload.ordinal %35#4, 3 : index
  %40 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%36]
  %41 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%37]
  %42 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>{%40, %41}
  %43 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%39]
  %44 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%38]
  %45 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%35#0) flags("ReadOnly|Indirect") : memref<?x?x4x2x4x16x4xf32, strided<[?, 2048, 512, 256, 64, 4, 1], offset: ?>, #hal.descriptor_type<storage_buffer>>{%43, %44}
  %46 = hal.interface.binding.subspan layout(<constants = 10, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : memref<?x?xf32, #hal.descriptor_type<storage_buffer>>{%36, %39}
  %47 = iree_codegen.load_from_buffer %42 : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>> -> tensor<?x?x8x4x4x4x4xf32>
  %48 = iree_codegen.load_from_buffer %45 : memref<?x?x4x2x4x16x4xf32, strided<[?, 2048, 512, 256, 64, 4, 1], offset: ?>, #hal.descriptor_type<storage_buffer>> -> tensor<?x?x4x2x4x16x4xf32>
  %49 = tensor.empty(%40, %43) : tensor<?x?x4x8x2x4x16x4xf32>
  %50 = linalg.fill ins(%cst : f32) outs(%49 : tensor<?x?x4x8x2x4x16x4xf32>) -> tensor<?x?x4x8x2x4x16x4xf32>
  %51 = iree_codegen.inner_tiled ins(%47, %48) outs(%50) {indexing_maps = [affine_map<(d0, d1, d2) -> (d0, d2)>, affine_map<(d0, d1, d2) -> (d1, d2)>, affine_map<(d0, d1, d2) -> (d0, d1)>], iterator_types = [#linalg.iterator_type<parallel>, #linalg.iterator_type<parallel>, #linalg.iterator_type<reduction>], kind = #iree_gpu.data_tiled_mma_layout<intrinsic = MFMA_F32_16x16x4_F32, intrinsics_m = 8, intrinsics_n = 2, subgroups_n = 4, intrinsics_k = 4>} : tensor<?x?x8x4x4x4x4xf32>, tensor<?x?x4x2x4x16x4xf32> into tensor<?x?x4x8x2x4x16x4xf32>
  %dim = tensor.dim %51, %c0 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_0 = tensor.dim %51, %c1 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_1 = tensor.dim %51, %c0 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_2 = tensor.dim %51, %c1 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_3 = tensor.dim %51, %c0 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_4 = tensor.dim %51, %c1 : tensor<?x?x4x8x2x4x16x4xf32>
  %dim_5 = tensor.dim %51, %c0 : tensor<?x?x4x8x2x4x16x4xf32>
  %52 = affine.apply affine_map<()[s0] -> (s0 * 128)>()[%dim_5]
  %dim_6 = tensor.dim %51, %c1 : tensor<?x?x4x8x2x4x16x4xf32>
  %53 = affine.apply affine_map<()[s0] -> (s0 * 128)>()[%dim_6]
  %54 = tensor.empty(%36, %39) : tensor<?x?xf32>
  %55 = iree_linalg_ext.map_scatter %51 into %54 {
  ^bb0(%arg0: index, %arg1: index, %arg2: index, %arg3: index, %arg4: index, %arg5: index, %arg6: index, %arg7: index):
    %56 = affine.linearize_index disjoint [%arg0, %arg1, %arg5, %arg3, %arg7, %arg2, %arg6, %arg4] by (%dim, %dim_0, 4, 8, 4, 4, 16, 2) : index
    %57:4 = affine.delinearize_index %56 into (%dim_1, %dim_2, 128, 128) : index, index, index, index
    %58 = affine.linearize_index disjoint [%57#0, %57#2, %57#1, %57#3] by (%dim_3, 128, %dim_4, 128) : index
    %59:2 = affine.delinearize_index %58 into (%52, %53) : index, index
    %60 = arith.cmpi ult, %59#0, %36 : index
    %61 = arith.cmpi ult, %59#1, %39 : index
    %62 = arith.andi %60, %61 : i1
    iree_linalg_ext.yield %59#0, %59#1, %62 : index, index, i1
  } : tensor<?x?x4x8x2x4x16x4xf32> into tensor<?x?xf32> -> tensor<?x?xf32>
  iree_codegen.store_to_buffer %55, %46 : tensor<?x?xf32> into memref<?x?xf32, #hal.descriptor_type<storage_buffer>>
  return
}
IR dump after the pass
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
func.func @_encoding_0_encode_DxDxf32_to_DxDxf32() {
  %c1 = arith.constant 1 : index
  %true = arith.constant true
  %c16 = arith.constant 16 : index
  %c128 = arith.constant 128 : index
  %cst = arith.constant 0.000000e+00 : f32
  %c32_i64 = arith.constant 32 : i64
  %c0 = arith.constant 0 : index
  %0 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(0) : i32
  %1 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(1) : i32
  %2 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(2) : i32
  %3 = hal.interface.constant.load layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) ordinal(3) : i32
  %4 = arith.extui %0 : i32 to i64
  %5 = arith.extui %1 : i32 to i64
  %6 = arith.shli %5, %c32_i64 : i64
  %7 = arith.ori %4, %6 : i64
  %8 = arith.index_castui %7 : i64 to index
  %9 = arith.extui %2 : i32 to i64
  %10 = arith.extui %3 : i32 to i64
  %11 = arith.shli %10, %c32_i64 : i64
  %12 = arith.ori %9, %11 : i64
  %13 = arith.index_castui %12 : i64 to index
  %14:2 = util.assume.int
      %8<umin = 0, umax = 9007199254740991>,
      %13<umin = 0, umax = 9007199254740991>
    : index, index
  %15 = iree_tensor_ext.dispatch.workload.ordinal %14#0, 0 : index
  %16 = iree_tensor_ext.dispatch.workload.ordinal %14#1, 1 : index
  %17 = iree_tensor_ext.dispatch.workload.ordinal %14#0, 2 : index
  %18 = iree_tensor_ext.dispatch.workload.ordinal %14#1, 3 : index
  %19 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(0) alignment(64) offset(%c0) flags("ReadOnly|Indirect") : memref<?x?xf32, #hal.descriptor_type<storage_buffer>>{%15, %16}
  %20 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%17]
  %21 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%18]
  %22 = hal.interface.binding.subspan layout(<constants = 4, bindings = [#hal.pipeline.binding<storage_buffer, "ReadOnly|Indirect">, #hal.pipeline.binding<storage_buffer, Indirect>], flags = Indirect>) binding(1) alignment(64) offset(%c0) flags(Indirect) : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>{%20, %21}
  %23 = iree_codegen.load_from_buffer %19 : memref<?x?xf32, #hal.descriptor_type<storage_buffer>> -> tensor<?x?xf32>
  %24 = affine.apply affine_map<()[s0] -> (s0 ceildiv 128)>()[%15]
  %25 = affine.apply affine_map<()[s0] -> (s0 ceildiv 16)>()[%16]
  %26 = affine.apply affine_map<()[s0, s1, s2] -> (s0 * 128 - s1 + s2)>()[%24, %15, %15]
  %27 = affine.apply affine_map<()[s0, s1, s2] -> (s0 * 16 - s1 + s2)>()[%25, %16, %16]
  %28 = arith.divsi %26, %c128 : index
  %29 = arith.divsi %27, %c16 : index
  %30 = affine.apply affine_map<()[s0, s1, s2] -> (s0 * 128 - s1 + s2)>()[%24, %15, %15]
  %31 = affine.apply affine_map<()[s0, s1, s2] -> (s0 * 16 - s1 + s2)>()[%25, %16, %16]
  %32 = tensor.empty(%24, %25) : tensor<?x?x8x4x4x4x4xf32>
  %33 = iree_linalg_ext.map_scatter %23 into %32 {
  ^bb0(%arg0: index, %arg1: index):
    %36 = affine.linearize_index disjoint [%arg0, %arg1] by (%30, %31) : index
    %37:4 = affine.delinearize_index %36 into (%28, 128, %29, 16) : index, index, index, index
    %38 = affine.linearize_index disjoint [%37#0, %37#2, %37#1, %37#3] by (%28, %29, 128, 16) : index
    %39:7 = affine.delinearize_index %38 into (%24, %25, 4, 8, 4, 4, 4) : index, index, index, index, index, index, index
    iree_linalg_ext.yield %39#0, %39#1, %39#3, %39#6, %39#2, %39#4, %39#5, %true : index, index, index, index, index, index, index, i1
  } : tensor<?x?xf32> into tensor<?x?x8x4x4x4x4xf32> -> tensor<?x?x8x4x4x4x4xf32>
  iree_codegen.store_to_buffer %33, %22 : tensor<?x?x8x4x4x4x4xf32> into memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>
  %34 = affine.apply affine_map<()[s0, s1, s2] -> (s0 * 128 - s1 + s2)>()[%24, %15, %15]
  %35 = affine.apply affine_map<()[s0, s1, s2] -> (s0 * 16 - s1 + s2)>()[%25, %16, %16]
  scf.forall (%arg0, %arg1) = (%15, 0) to (%34, %35) step (1, 64) {
    %36 = affine.min affine_map<(d0)[s0] -> (d0 + 1, s0)>(%arg0)[%34]
    %37 = affine.min affine_map<(d0)[s0] -> (d0 + 64, s0)>(%arg1)[%35]
    scf.forall (%arg2, %arg3) = (%arg0, %arg1) to (%36, %37) step (1, 1) {
      %38 = affine.min affine_map<(d0, d1) -> (d0 + 1, d1)>(%arg2, %36)
      %39 = affine.min affine_map<(d0, d1) -> (d0 + 1, d1)>(%arg3, %37)
      scf.for %arg4 = %arg2 to %38 step %c1 {
        scf.for %arg5 = %arg3 to %39 step %c1 {
          %40 = affine.linearize_index disjoint [%arg4, %arg5] by (%30, %31) : index
          %41:4 = affine.delinearize_index %40 into (%28, 128, %29, 16) : index, index, index, index
          %42 = affine.linearize_index disjoint [%41#0, %41#2, %41#1, %41#3] by (%28, %29, 128, 16) : index
          %43:7 = affine.delinearize_index %42 into (%24, %25, 4, 8, 4, 4, 4) : index, index, index, index, index, index, index
          scf.if %true {
            memref.store %cst, %22[%43#0, %43#1, %43#3, %43#6, %43#2, %43#4, %43#5] : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>
          }
        }
      }
    } {mapping = [#gpu.thread<linear_dim_1>, #gpu.thread<linear_dim_0>]}
  } {mapping = [#iree_codegen.workgroup_mapping<x>, #iree_codegen.workgroup_mapping<y>]}
  scf.forall (%arg0, %arg1) = (0, %16) to (%34, %35) step (1, 64) {
    %36 = affine.min affine_map<(d0)[s0] -> (d0 + 1, s0)>(%arg0)[%34]
    %37 = affine.min affine_map<(d0)[s0] -> (d0 + 64, s0)>(%arg1)[%35]
    scf.forall (%arg2, %arg3) = (%arg0, %arg1) to (%36, %37) step (1, 1) {
      %38 = affine.min affine_map<(d0, d1) -> (d0 + 1, d1)>(%arg2, %36)
      %39 = affine.min affine_map<(d0, d1) -> (d0 + 1, d1)>(%arg3, %37)
      scf.for %arg4 = %arg2 to %38 step %c1 {
        scf.for %arg5 = %arg3 to %39 step %c1 {
          %40 = affine.linearize_index disjoint [%arg4, %arg5] by (%30, %31) : index
          %41:4 = affine.delinearize_index %40 into (%28, 128, %29, 16) : index, index, index, index
          %42 = affine.linearize_index disjoint [%41#0, %41#2, %41#1, %41#3] by (%28, %29, 128, 16) : index
          %43:7 = affine.delinearize_index %42 into (%24, %25, 4, 8, 4, 4, 4) : index, index, index, index, index, index, index
          scf.if %true {
            memref.store %cst, %22[%43#0, %43#1, %43#3, %43#6, %43#2, %43#4, %43#5] : memref<?x?x8x4x4x4x4xf32, #hal.descriptor_type<storage_buffer>>
          }
        }
      }
    } {mapping = [#gpu.thread<linear_dim_1>, #gpu.thread<linear_dim_0>]}
  } {mapping = [#iree_codegen.workgroup_mapping<x>, #iree_codegen.workgroup_mapping<y>]}
  return
}

Build Your Own Encoding Attributes and Resolverlink

Data-tiling is an optional optimization technique, and it is not supported by all backends. The targets that support data-tiling are:

  • CPU (x86)
  • CPU (AArch64)
  • CPU (RISC-V)
  • GPU (ROCm)
  • VMVX

More targets may be supported in the future, and contributions are welcome. You can explore the available options in Codegen/ExternalInterfaces/.

The encoding type attributes are defined in EncodingAttrs.td; the target-specific encoding resolvers, which decide how these attributes are lowered, are defined in their dialects. E.g., CPU defines the encoding resolvers in IREECPUAttrs.td, and GPU defines the encoding resolvers in IREEGPUAttrs.td.

The interface implementations are isolated in Codegen/ExternalInterfaces/, to avoid moving domain-specific logic into the dialect implementations. You can follow one of the implementations to build your own encoding resolver.
